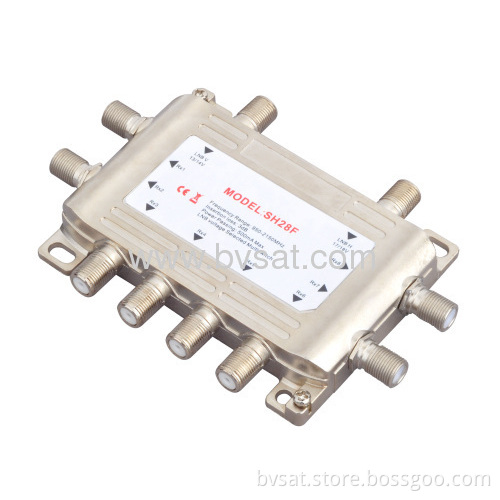

Fresh New Satellite Dish 2 Inputs And 8outputs Stand-alone Multiswitch

Product name: Fresh new satellite dish 2 inputs and 8outputs stand-alone multiswitch

Model Name: SH28F.
work area: indoor use.
2 satellite IF and 8 output for receivers.



1. Material
    Srews and Zinc die casting and PCBA.

2. Electrical
    Rated voltage: 10V - 20V
    Rated current: 0. 3A
    Contact resistance: 75 Ohm.
    Insertion loss: 3dB
    Return Loss: 12dB.

3. Feature
   2 satellite IF inputs for 8 satellite receiver.
   2 satellite IF inputs selected by 13V\18V signal
   Built-in amplifier, no need any power adapter supporting2 satellite IF inputs selected by 13V\18V signal.
   Low insertion loss, high isolation and return loss.
   SAT-IF-PATHs to the subscribers are active and supplied by the receiver.
   Zinc die cast housing, nickel plated.
   Design good for indoor usage.

Specifications
Item		Typical	QC Limit	Remark
Frequency Range		SAT:950~2150MHz
Inputs		2 SAT		F connectors
Outputs		8 Receiver		F connectors
Insertion Loss		3dB	4dB
Return Loss		12dB	10dB
Isolation	REC-REC	35dB	30dB
	H/V	30dB	25dB
Switching Voltage		V:10~14.5V     H:15~20V
Dimensions (L,W,H)		128×86×16		mm
