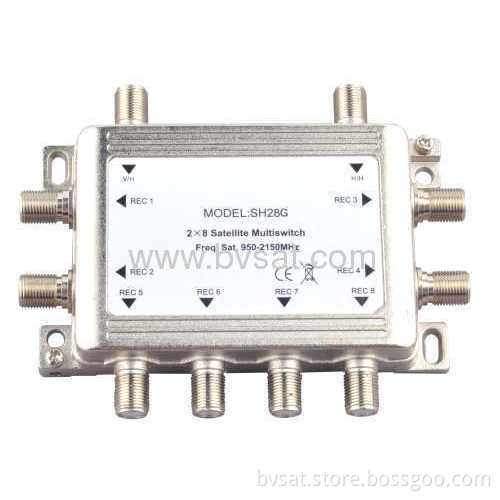

Equipment For Satellite Receiver Stand-alone Multiswitch 2x8

Product name: Equipment for satellite receiver stand-alone multiswitch 2x8

Featrues:
2 satellite IF inputs for 8 satellite receiver
2 satellite IF inputs selected by 13V\18V signal
Built-in amplifier, no need any power adapter supporting
Low insertion loss, high isolation and return loss
SAT-IF-PATHs to the subscribers are active and supplied by the receiver
Zinc die cast housing, nickel plated
Design good for indoor usage
Specifications
Item		Typical	QC Limit	Remark
Frequency Range		SAT:950~2150MHz
Inputs		2 SAT		F connectors
Outputs		8 Receiver		F connectors
Insertion Loss		4dB	5dB
Return Loss		12dB	10dB
Isolation	REC-REC	35dB	30dB
	H/V	30dB	25dB
22KHz Frequency Range		22 ± 2KHz
Vp-p		650 ± 250mV
Switching Voltage		V:10~14.5V     H:15~20V
Dmensions (w,d,h)		120×92×21		mm

Packing picture:






Related products picture:



                                                                                   Model:SH24G



                                                                                 Model: SH26G



                                                                         Model:SH28F
