High Isolation Multiswitches For Stand-alone 4 In 20 Out Receiver

Product name: High isolation multiswitches for stand-alone 4 in 20 out receiver

1.Description:

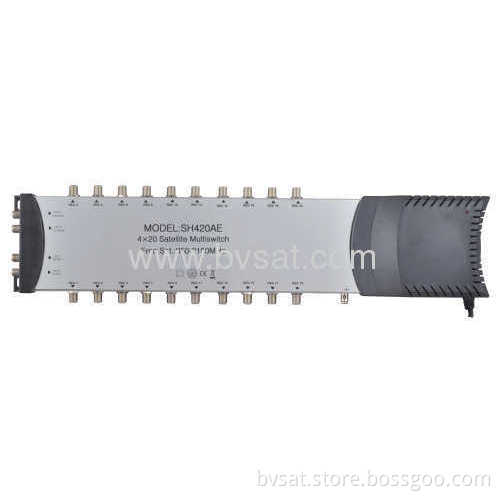

2. Picture:



3. Datasheet:

Specifications                     Item		Typical	QC Limit	Remark
Frequency Range		SAT:950~2150MHz
Inputs		4 SAT		F connectors
Outputs		20 Receiver		F connectors
Insertion Loss	SAT	3dB	5dB
Return Loss	SAT	12dB	10dB
Stop band attenuation	SAT	25dB	20dB
Isolation	H/V	30dB	25dB
	REC-REC	30dB	25dB
Switching Voltage		V:10~15.2V     H:15.2~20V
Power Supply		IN:90~264V OUT:18V 1200mA
Dimensions (L,W,H)		415×125×70		mm

4.Note:

a. High quality
b. Factory price
c. Fast delivery
d. Nice service
e. Professinal design

5. Other 4 in products:

                                                                                   Model:SH424AE



                                                                                      Model:SH428AE



                                                                                    Model:SH432AE
6. Promise:


8. Shipment:

By sea or by air

9. Remark:

Very important to dothis:

Before you connect or disconnect the switch, make surethe Receiveriscompletely disconnectedfrom any electricity outlets and has no electric connection.

Even if the button is off on the Receiver , you still need to unplug it. Otherwise it will burn the switch (switch will no longer be useful).
