Signal Lnb Multiswitch 4 In 28 Out Receivers Sat Tv Equipment

Product name: Signal LNB multiswitch 4 in 28 out receivers sat TV equipment

1. Features:

1. 4 satellite IF inputs for 28 satellite receiver
2. 4 satellite IF inputs selected by 13V\18V and 22KHz signal
3. Low insertion loss, high isolation and return loss
4. SAT-IF-PATHs to the subscribers are active and supplied by the receiver
5.Sheet metal housing with plastic holder
6.Design good for indoor usage

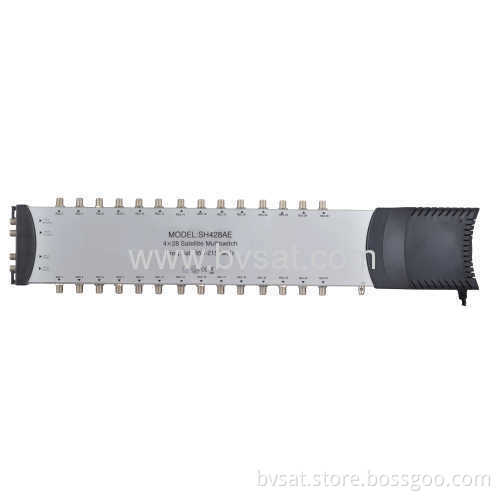

2. Picture show:




3. Data show:

Specifications                     Item		Typical	QC Limit	Remark
Frequency Range		SAT:950~2150MHz
Inputs		4 SAT		F connectors
Outputs		28 Receiver		F connectors
Insertion Loss	SAT	5dB	7dB
Return Loss	SAT	12dB	10dB
Stop band attenuation	SAT	25dB	20dB
Isolation	H/V	30dB	25dB
	REC-REC	30dB	25dB
Switching Voltage		V:10~15.2V     H:15.2~20V
Power Supply		IN:90~264V OUT:18V 1200mA
Dimensions (L,W,H)		495×125×70		mm

4. Package show:





5. Similar 4 in products:



                                                                             Model: SH416AE



                                                                             Model: SH420AE


                                                                            Model: SH424AE



                                                                            Model: SH432AE
