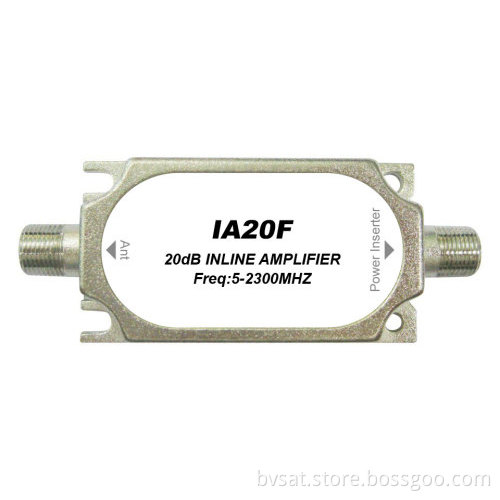

product name :5-2300 MHz Satellite Distribution Amplifier
feature
Model Number: IA20F
5-2300 MHz Satellite Distribution Amplifier
feature
Model Number: IA20F
|
Model Number: IA20F
|
||||||||
| Zinc die-casting housing, nickel-plated. | ||||||||
| Powered by the receiver via coaxial cable | ||||||||
| Design for in line boosting of SAT IF signal | ||||||||
| Models with slop gain can equilibrate for cable loss | ||||||||
| Low intermodulation distortion | ||||||||
| 20 dB Gain | ||||||||
| 500mA power pass for LNB operation requirement | ||||||||
| Output level test according to EN50083-3 or -5 | ||||||||
| Screening factor:Compliant to Class B | ||||||||
5-2300 MHz Satellite Distribution Amplifier
| ITEM | Typical | ||||
| Frequency response | 5-2300 MHz | ||||
| Gain | 20 dB | ||||
| Noise Figure | 5 dB | ||||
| Return Loss | 8 dB | ||||
| Output Level | SAT: 110@ 35 dB IMA3; Terr.: 105 @ 65 dB IMA3 | ||||
| Power supply | 13-18V DC, 40mA |
