Stable Quality Satellite Tv 2 In 8 Out Cascadable Multiswitch
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Description of Stable quality satellite tv 2 in 8 out casacadable multiswitch
Keywords: cascasdable multiswitch.satellite directv. Zinc tie series.
Features of 2 x 2 x8 cascadable multiswitch:
Specifications of 2 x2 x 8 cascadable multiswitch:
Other type multiswitches you may like:
2 x 6 stand-alone multiswitch
2 x 4 stand-alone multiswitch
2 x 8 stand-alone multiswitch
About Production:
About Q & A:
About application test:
About R & D:
About factory:
About our vision:
About our team:
About package:
About shipment:
1. By sea and air are our main deliivery way.
2. The shipping status will be informed once your order have been delivered.
About package:
1. Inner package: White box.
2. Outer package: Standard export carton.
About payment:
T/T,L/C and Western Union are acceptable.
Note:
1. This type products are used indoor like: apartment,hospital,school,building,comminity.
2. Before you connect or disconnect the switch, make sure the Receiveris completely disconnected from any electricity outlets and has no electric connection.
Promise:
1. Fast delivery.
2. High stable quality.
3. Sample order & Free sample is OK.
4. Your any requirement will get promptly attention.
Thanks for browsing.
Keywords: cascasdable multiswitch.satellite directv. Zinc tie series.
Features of 2 x 2 x8 cascadable multiswitch:
1.2 in 8 out satellite multiswitch
2.Zinc die cast housing, nickel plated
3.Excellent quality component, professional circuit design and low loss
4.Applicable to multi-satellite and multi-receiver usage
5.Low cascading loss and high isolation
6.Adjustable Gain & Slope
7.LNB powered from subscriber port
8.No external power required
9.Connectors: "F"type female

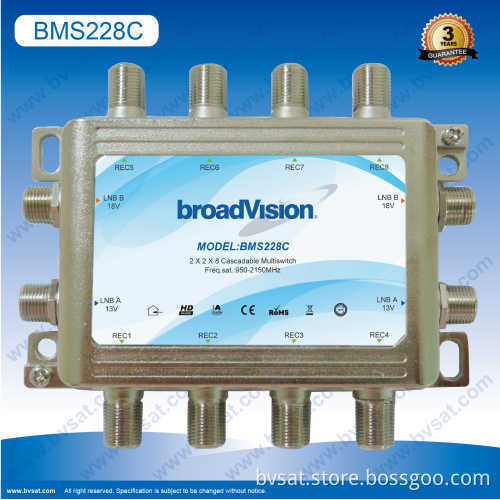

Photo of 2 x 2 x 8 cascadable multisiwtch:
Photo of 2 x 2 x 8 cascadable multisiwtch:
Specifications of 2 x2 x 8 cascadable multiswitch:
|
Technical Datasheet
|
||
|
Item
|
Typical
|
QC Limit
|
|
Model NO.
|
BMS228C
|
|
|
Description
|
Cascadeable2x2x8 multiswitch
|
|
|
Inputs/Outputs
|
2 in/8 out
|
|
|
Frequency Range
|
950-2150MHz
|
|
|
Switchingcommands
|
13V 18V
|
|
|
SwitchingVoltage
|
V:10-14.5V H:15.5-20V
|
|
|
Power supply
|
Powersupplied from Receiver
|
|
|
Impedanceinput/output
|
75Ω
|
|
|
Dimensions(L,W,H)
|
120×92×21mm
|
|
|
SupplyVoltage
|
20DC(±1)700mA
|
|
|
DC MaxPower Passing
|
500 mA
|
|
|
Thru Loss
|
2dB
|
3dB
|
|
Tap Loss
|
0dB
|
2dB
|
|
ReturnLoss
|
12dB
|
10dB
|
|
Isolation(H/V)
|
30dB
|
25dB
|
|
Isolation(REC-REC
|
35dB
|
30dB
|
Other type multiswitches you may like:
2 x 6 stand-alone multiswitch
2 x 4 stand-alone multiswitch
2 x 8 stand-alone multiswitch
About Production:
About Q & A:
About application test:
About R & D:
About factory:
About our vision:
About our team:
About package:
About shipment:
1. By sea and air are our main deliivery way.
2. The shipping status will be informed once your order have been delivered.
About package:
1. Inner package: White box.
2. Outer package: Standard export carton.
About payment:
T/T,L/C and Western Union are acceptable.
Note:
1. This type products are used indoor like: apartment,hospital,school,building,comminity.
2. Before you connect or disconnect the switch, make sure the Receiveris completely disconnected from any electricity outlets and has no electric connection.
Promise:
1. Fast delivery.
2. High stable quality.
3. Sample order & Free sample is OK.
4. Your any requirement will get promptly attention.
Thanks for browsing.
