New 5 In 20 Out Sheet Metal Satellite 5x20 Stand-alone Multiswitch For Smatv System
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Product name: New 5 in 20 out sheet metal satellite 5x20 stand-alone multiswitch for SMATV system
Features of New 5 in 20 out sheet metal satellite 5x20 stand-alone multiswitch for SMATV system:
Product photo:
Package information of New 5 in 20 out sheet metal satellite 5x20 stand-alone multiswitch for SMATV system:
Package and shipping:
Production:
Q&A:
R&D:
Test:
Our factory:
Our sales team:
Our services:
You may also like the following items:
5in series stand-alone satellite multiswitch 5x8 (BMS58E)
5in series cascadable satellite multiswitch 5x5x16 (BMS5516E)
Features of New 5 in 20 out sheet metal satellite 5x20 stand-alone multiswitch for SMATV system:
1. 5 x 20 stand-alone satellite multiswitch
2. Sheet metal housing with plastic holder
3. Simple interface design provides two satellite polarity inputs and twenty outputs for quick installation
4. Built-in low-distortion amplifier (some models) compensates for insertion loss, reducing need for external amplification
5. CE & RoHs certifications
6. Free sample provided

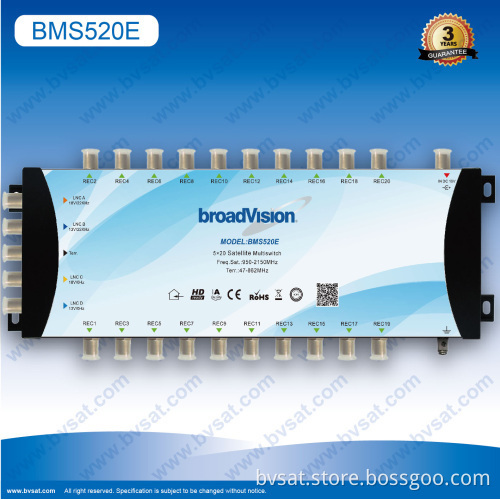

Product photo:
Specification of New 5 in 20 out sheet metal satellite 5x20 stand-alone multiswitch for SMATV system:
Product photo:
Specification of New 5 in 20 out sheet metal satellite 5x20 stand-alone multiswitch for SMATV system:
Technical Datasheet | ||
Item |
Typical |
QC Limit |
Model NO. |
BMS520E |
|
Description |
Stand-alone 5x20 multiswitch |
|
Inputs/Outputs |
4 SAT+1 Terr./ 20 Receiver
|
|
Frequency Range |
Terr.:47~862MHz SAT:950~2150MHz |
|
Switching commands |
13V 18V |
|
Switching Voltage |
V:10-15.2V H:15.2-20V |
|
Power Supply |
IN:100~240V OUT:18V 1200mA |
|
Dimensions (L,W,H) |
310×125×43 mm |
|
Max. Current Pass to LNB
|
1000 mA |
|
Insertion Loss(SAT) |
3dB |
5dB |
Insertion Loss(Terr.) |
5dB |
7dB |
Return Loss(SAT) |
12dB |
10dB |
Return Loss(Terr.) |
12dB |
10dB |
Stop band attenuation(SAT) |
25dB |
20dB |
Stop band attenuation(Terr.) |
25dB |
20dB |
Isolation(H/V) |
30dB |
25dB |
Isolation(REC-REC) |
30dB |
25dB |
Product photo:
Package information of New 5 in 20 out sheet metal satellite 5x20 stand-alone multiswitch for SMATV system:
| Model | White box( LxWxH cm) | Carton(LxWxH cm) | N.W(KGS) | QTY/CTN | G.W(KGS) | CBM/CTN |
| BMS520E | 41*13*6 | 43*28*33 | 7.2 | 10 | 10.4 | 0.04 |
