Vision Satellite Singal 3 X 6 Zinc Tie Cast Housing Multiswitch For Ip Receiver
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Description of Vision satellite singal 3 x 6 Zinc tie cast housing multiswitch forIP receiver
Keywords: satellite multiswitch. for dish network. for antenna. for IP receiver.
Photo of 3 x 6 Zinc tie multiswitch:
Features of 3 x 6 Zinc tie multiswitch:
Specification of 3 x 6 Zinc tie multiswitch:
Production:
Q & A:
R & D:
Test:
Application test:
Package:
Package detail:
Factory:
Our team:
Vision:
About shipment:
1. By sea and air are our main deliivery way.
2. The shipping status will be informed once your order have been delivered.
About package:
1. Inner package: White box.
2. Outer package: Standard export carton.
About payment:
T/T,L/C and Western Union are acceptable.
Note:
1. This type products are used indoor like: apartment,hospital,school,building,comminity.
2. Before you connect or disconnect the switch, make sure the Receiveris completely disconnected from any electricity outlets and has no electric connection.
Promise:
1. Fast delivery.
2. High stable quality.
3. Sample order & Free sample is OK.
4. Your any requirement will get promptly attention.
Thanks for browsing.
Keywords: satellite multiswitch. for dish network. for antenna. for IP receiver.

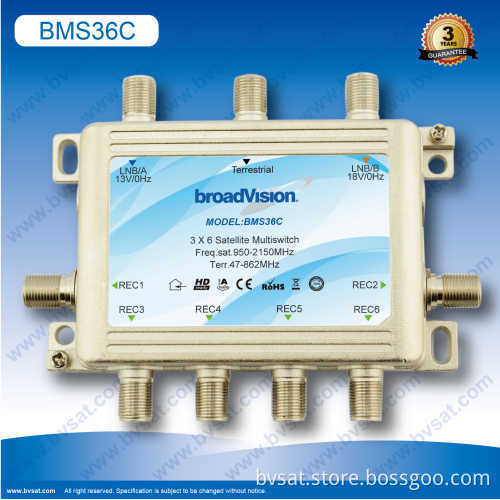

Photo of 3 x 6 Zinc tie multiswitch:
Features of 3 x 6 Zinc tie multiswitch:
1. Miniature and light weight design for small installation in limited space
2. Sturdy zinc die-cast housings
3. Two ground lugs
4. Low Loss design
5. Wide frequency range 47~2150MHz
6. Designed for indoor or outdoor use
Detail of 3 x 6 Zinc tie multiswitch:
Detail of 3 x 6 Zinc tie multiswitch:
Specification of 3 x 6 Zinc tie multiswitch:
Technical Datasheet | ||
Item |
Typical |
QC Limit |
Model NO. |
BMS36C |
|
Description |
Stand-alone3x6 multiswitch |
|
Inputs/Outputs |
2 SAT+1Terr./ 6 Receiver |
|
Frequency Range |
Terr.:47~862MHz SAT:950~2150MHz |
|
Switchingcommands |
13V 18V |
|
SwitchingVoltage |
V:10-15V H:16-20V |
|
Impedanceinput/output |
75Ω |
|
Dimensions(L,W,H) |
120×92×21mm |
|
SupplyVoltage |
20DC(±1)700mA |
|
DC MaxPower Passing |
500 mA |
|
InsertionLoss(SAT) |
7dB |
8dB |
InsertionLoss(Terr.) |
13dB |
15dB |
ReturnLoss(SAT) |
12dB |
10dB |
ReturnLoss(Terr.) |
12dB |
10dB |
Stop bandattenuation(SAT) |
25dB |
20dB |
Stop bandattenuation(Terr.) |
25dB |
20dB |
Isolation(H/V) |
30dB |
25dB |
Isolation(REC-REC) |
30dB |
25dB |
Production:
Q & A:
R & D:
Test:
Application test:
Package:
Package detail:
| Model | White Box(L x W x H)(cm) | Carton(L x W x H)(cm) | N.W(KGS) | QTY/CTN | G.W(KGS) | CBM/CTN |
| BMS36C | 11.2*9.5*2.2 | 33*23*20 | 10 | 50 | 13.5 | 0.015 |
Factory:
Our team:
Vision:
About shipment:
1. By sea and air are our main deliivery way.
2. The shipping status will be informed once your order have been delivered.
About package:
1. Inner package: White box.
2. Outer package: Standard export carton.
About payment:
T/T,L/C and Western Union are acceptable.
Note:
1. This type products are used indoor like: apartment,hospital,school,building,comminity.
2. Before you connect or disconnect the switch, make sure the Receiveris completely disconnected from any electricity outlets and has no electric connection.
Promise:
1. Fast delivery.
2. High stable quality.
3. Sample order & Free sample is OK.
4. Your any requirement will get promptly attention.
Thanks for browsing.
