Wonderful Lnb For Directv Satellite Dish Of 5 X 5 X 8 Cascadable Multiswitch

Description of Wonderful lnb for directv satellite dish of 5 x 5 x 8 cascadable multiswitch

Features of 5 x 5 x 8 cascadable multiswitch:

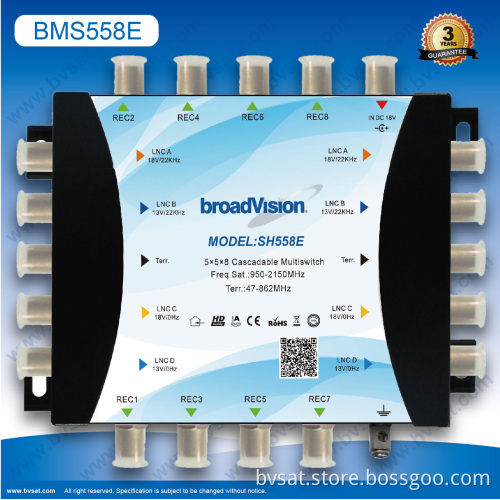

Photo of 5 x 5 x 8 cascadable multiswitch:


Specification of 5 x 5 x 8 cascadable multiswitch:

Technical Datasheet
Item	Typical	QC Limit
Model NO.	BMS558E
Description	Cascadeable5x5x8 multiswitch
Inputs/Outputs	4 SAT+1Terr./ 8 Receiver
Frequency Range	Terr.:47~862MHz    SAT:950~2150MHz
Switchingcommands	13V              18V
Power Adapter	IN:100~240V       OUT:18V 1200mA
Dimensions(L,W,H)	180×125×43mm
Max.Current Pass to LNB	1200 mA
Thru Loss(Terr.)	3dB	4dB
Thru Loss(SAT)	3dB	4dB
Tap Loss(Terr.)	4dB	6dB
Tap Loss(SAT)	0dB	2dB
ReturnLoss(Terr.)	12dB	10dB
ReturnLoss(SAT)	12dB	10dB
Stop bandattenuation(Terr.)	28dB	25dB
Stop bandattenuation(SAT)	28dB	25dB
Isolation(H/V)	30dB	25dB
Isolation(REC-REC)	30dB	25dB

Other products you may like:


                                                  5 x 5 x 4 cascadable multiswitch(BMS554E)


                                                           5 x 5 x 12 cascadable multiswitch(BMS5512E)


                                         5 x 5 x 16 cascadable multiswitch(BMS5516E)

Production:


Q & A:


R & D:


Test:


Application test:



Package:


Package detail:

Model	White box(L*W*H)(cm)	Carton((L * W * H)(cm)	N.W(KGS)	QTY/CTN	G.W(KGS)	CBM/CTN
BMS558E	25.8*13*6	50*30.5*33	7.8	20	9.3	0.055

Factory:


Our team:


Vision:



About shipment:

1. By sea and air are our main deliivery way.
2. The shipping status will be informed once your order have been delivered.

About package:

1. Inner package: White box.
2. Outer package: Standard export carton.

About payment:

T/T,L/C and Western Union are acceptable.

Note:

1. This type products are used indoor like: apartment,hospital,school,building,comminity.
2. Before you connect or disconnect the switch, make sure the Receiveris completely disconnected from any electricity outlets and has no electric connection.


Promise:

1. Fast delivery.
2. High stable quality.
3. Sample order & Free sample is OK.
4. Your any requirement will get promptly attention.
