Product name: Smart wholesale satellite dish of sat TV 3 x 8 multiswitch

Features of 3 x 8 satellite multiswitch:

1. Suitable for multi-satellite and multi-user system

2. 3 inputs, 8 input

3. Low cascading loss and high isolation

4. Feed from Quattro-LNB or Quad-LNB thru 22 KHz generator

5. SAT IF selected by 13/18V, 22 KHz and DiSEqC2.0 commands

6. Professional design, exquisite appearance and convenient installation

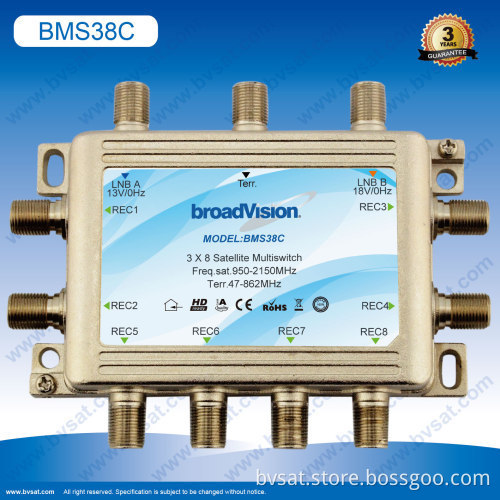

Photo of 3 x 8 satellite multiswitch:

Specification:

Technical Datasheet
Item	Typical	QC Limit
Model NO.	BMS38C
Description	Stand-alone3x8 multiswitch
Inputs/Outputs	2 SAT+1Terr./ 8 Receiver
Frequency Range	Terr.:47~862MHz SAT:950~2150MHz
Switchingcommands	13V 18V
SwitchingVoltage	V:10-15V H:16-20V
Impedanceinput/output	75Ω
Dimensions(L,W,H)	120×92×21mm
SupplyVoltage	20DC(±1)700mA
DC MaxPower Passing	500 mA
InsertionLoss(SAT)	7dB	8dB
InsertionLoss(Terr.)	13dB	15dB
ReturnLoss(SAT)	12dB	10dB
ReturnLoss(Terr.)	12dB	10dB
Stop bandattenuation(SAT)	25dB	20dB
Stop bandattenuation(Terr.)	25dB	20dB
Isolation(H/V)	30dB	25dB
Isolation(REC-REC)	30dB	25dB

The application diagram ofSatellite TV 3x8 multiswitch

Remarks:

1. Take care not to make short-circuits when mounting the F-connectors on the cables.

2. Identify the down-lead cables from the LNB. Then interconnect the input marked 12V to the LNB output Vertical. Interconnect the input marked 18V to the LNB output Hori-zontal.

3. Before connecting the input and output coaxial cables, disconnect from the mains the mul-tiswitch as well as the receivers and TV sets.

4. In case of short-circuit of an antenna cable, electric power supply of the cable is automa-tically turned off and an alarm buzzer sounds (except in MS-0504 and MS-0508 models). Disconnect the multiswitch from the mains at least for 1 minute and remedy short-circuit of the connector.

5. Not connected outputs of the multiswitch should be terminated with 75Ω terminations.

6. Input signal levels may be levelled with the existing variable attenuators. This work requi-res an appropriate SAT-TV analyzer.

Details:

Production:

Q & A:

Application test:

Test:

Package:

Package detail:

Model	White box(L x W x H)(cm)	Carton(L x W x H)(cm)	N.W(KGS)	QTY/CTN	G.W(KGS)	CBM/CTN
BMS38C	11.59.22.2	332320	10	50	13.2	0.015
