5w Gu10 Led Spotlight With Dimmable Function
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Description of 5W GU10 LED spotlight
This led spotlight with 24pcs super bright 3020 SMD led. The luminous flux can reach 430lm.
Features of 5W GU10 LED spotlight
Other base types & input voltage for optional.
Package Details
NOTE:
Applications:
Indoor using, such as home, hotel, market, super market, office, warehouse,
parking lot, factory, advertise box and so on bring you a bright and green lighting environment.
This led spotlight with 24pcs super bright 3020 SMD led. The luminous flux can reach 430lm.
The material is Die casting aluminum and dimension is Ф50×56 mm, base type is GU10.

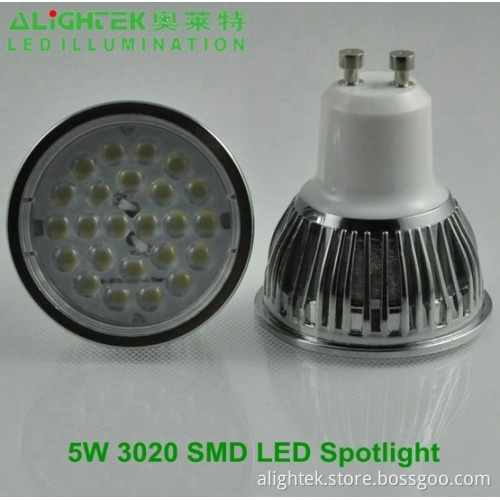

Photo of this GU10 LED light
Photo of this GU10 LED light
Features of 5W GU10 LED spotlight
1. Super bright:with 24pcs super bright 3020 smd led.
2. Energy saving: with high efficiency constant current driver, low power consumption.
3. Long lifetime, can reach 30,000 hours.
4. Good ability for adapt to the change of temperature
4. Good ability for adapt to the change of temperature
5. Eco-friendly, no heavy metal and harmful gas.
6. No flicker.
Main parameters of 5W GU10 LED spotlight
Main parameters of 5W GU10 LED spotlight
| Item | Value | Unit |
| Power | 4.6±10% | W |
| Voltage | AC86240V | V |
| Current | 0.08A MAX | A |
| Frequency Range | 50/60 | Hz |
| Power Factor | 0.9 | Pf |
| Conversion Efficiency | 0.83 | η |
| Beam Angle | 60 | DEGREE |
| Working Temperature | -1050 | ℃ |
| Relative Humidity | 10%90% | RH |
| Luminous flux(white color) | 430 | LM |
| Color Temperature | 5500k6500k | K |
| Life-span | 30000 | HOUR |
| LED Qty | 24 | PCS |
| LED Power | 0.15 | W |
Other base types & input voltage for optional.
| Voltage | Base | Power (W) |
LED Source | LEDQuantity (pcs) |
FluxWW 2800-3500K |
Beam Angle | Dimension (mm) |
Driver |
| Dim AC170-250V NO-dimmable AC100-AC250V |
GU10 | 4.6-5.0W | 3020 | 24pcs | 400-430lm | 60 | 50*56mm | Swichingpower supply |
| AC100-AC250V | GU10 | TUVdriver | ||||||
| AC/DC12V | MR16 | 50*46mm | DC driver |
Dimension drawings:
Test Report:
Lumen Decrease
| Operating Time (hour) | Lumen Decrease |
| 0 | 0% |
| 500 | 1.50% |
| 1000 | 2.50% |
| 2000 | 4.10% |
| 3000 | 5.30% |
| 5000 | 8% |
Test condition: TA=25℃,RH=65%, Light work lasting
Package Details
| Single package size | Single packageweight | Qty/Carton | Carton size | Carton weight |
| 52x52x72mm | 0.073Kg | 200PCS | 600*320*360mm | 16.0Kg |
NOTE:
Input voltage of AC86-240V. The GU10 can only be installed inside the lamp holder.
Have to switch off the power supply before installation. Indoor use. When the temperature is too high,
the output side will turn off and the light will go out for protection. When the temperature is down, it could be used again
Applications:
Indoor using, such as home, hotel, market, super market, office, warehouse,
parking lot, factory, advertise box and so on bring you a bright and green lighting environment.
