30w Ir Sensor Led Floodlight With Meanwell Power Supply
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Features of 30W IR sensor LED floodlight
Photo of IP65 waterproof 30W sensor flood lamp
LED Driver Parameters
Light fixture Parameters
Sensor LED floodlight distribution curve
The effective average illuminance figures
NOTE: The above chart are the light fixtures' average illumination under different projection distance.
Installation Instructions of 30 Watts sensor LED floodlight
Instruction for maintaining and repairing
Flood lamp Fixtures's dimension
Note
1. Using high power Patent integrating COB Bridgelux LED as light source, high Light effects, the lamp's luminous efficiency can reach 80~100LM/W, and high color rendering index CRI>80Ra, low light attenuation.
2. Accommodate to wide input voltage from 85V~265VAC, constant voltage & current output, it can start up at once with no flickering, lightning protection and PFC function available.
3. High efficiency & energy saving. Under the condition of the same illumination, it saves more than 70% energy compared with the traditional flood lamp.
4. Adopting die casting aluminum alloy electricity box, which have good strength, good heat dissipation property, and with baking varnish treatment, the lamp is anti-corrosion, can be used in outdoor lighting.
4. Adopting die casting aluminum alloy electricity box, which have good strength, good heat dissipation property, and with baking varnish treatment, the lamp is anti-corrosion, can be used in outdoor lighting.
5. Eco-friendly, Recyclable. No UV & IR. It won't distribute ray radiation, also it won't generate EMI. Good for eyesight protection; Protection level reaches IP65.
6. Good Thermal conduction design, integration of the advanced die-casting forming, small contact resistance, high cooling efficiency
7. It comes with PIR switch, the induction time and sensor type can be set freely, meet up with certain illumination needs.

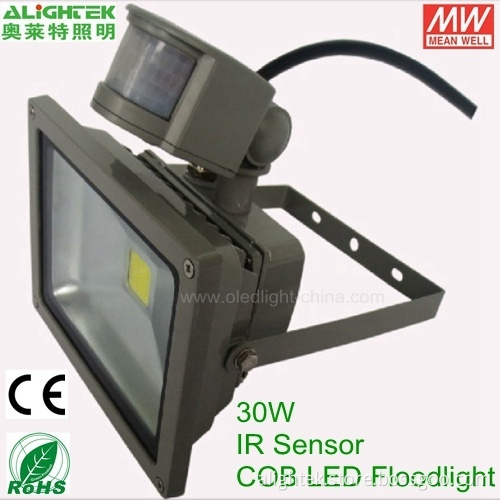

Photo of IP65 waterproof 30W sensor flood lamp
LED Driver Parameters
| Power | 30W |
| Input Voltage/Frequency | 85-265VAC/ 50-60Hz |
| Input Current(Typ) | 0.5A MAX |
| Output Voltage | 30-36V |
| Output Current | 870MA |
| Efficiency(Typ) | 86% |
| Power Factor(Typ) | PF over 95 |
Light fixture Parameters
| LEDChips QuantityLED | 1 Pcs |
| System Consumption | 30W |
| LED Luminous Efficiency | 80-100Lm/W |
| Color Temperature | 2700K - 7000K |
| Lamp's Initial LuminousEfficiency | ≥70Lm/W |
| Lumen Maintenance | 70%(50000Hrs) |
| Color Rendering Index | Ra≥80 |
| Beam Angle | 120°or 60° |
| Operating Temperature | -40℃ +45℃ |
| Storage Temperature | -40℃ +70℃ |
| IP Grade | IP65 |
| Life-span | 50000Hrs |
| Detection distance 25℃ | 4-6M(<25℃) |
| Time-delay | 5sec ~ 10min |
| Detection range | 120° |
| Rated load | 300w |
| Materials | Aluminium |
| Appliance Class | ClassⅠ |
| The color of the lamp shell | Black/Silver |
| Power line | 1 mm2 The three wires |
Sensor LED floodlight distribution curve
The effective average illuminance figures
NOTE: The above chart are the light fixtures' average illumination under different projection distance.
Installation Instructions of 30 Watts sensor LED floodlight
1. Make the flood light fixtures Installed on the fixed frame (wall) on the lamp bracket and fixed frame with the three screws
2. Working and Storing in the normal temperature.
3. When installing the products, the point of connecting of wires must be closed very well to avoid the leakage of electricity
4. Must take the right waterproof protection when connect the outside power wires.
5. Prohibit violating any fire protecting rules when using it.
6. Please find a professional electrician when installing. And the ways of connecting of three wires is that Brown is live wire, Blue is null line, Yellow is earth wire.
Applications:
Underground corridor, factory, warehouse, highway toll station.
Gas station, supermarket, exhibition, gym Mall, conference room, market etc…
Packing Details for total 4pcs sensor flood light fixtures
Packing Details for total 4pcs sensor flood light fixtures
| Lamp inner package size | 180*300*310(mm) |
| Outer Carton package size | 380*610*330(mm) |
| Packing Weight of the radiator | 10.65 KGS |
| Net weight | 2.40 KGS |
Instruction for maintaining and repairing
1. The power must be cut off before maintaining.
2. Regularly clean the glass of the floodlights to ensure the good light transmittance
3. Periodically clean the housing and radiator to make sure the good performance of heat dissipation.
4. Forbid to use water or other corrosive liquid to clean, must use dry cloth.
5. Using the screwdriver open the rear cover and take out of the driver to change a new one.
And make connection of the wires to AC driver, please follow: Brown to connect "L", Blue to connect "N", Yellow to connect "", And the red or white wires of DC connect the positive pole of driver, then the black wire connect the negative pole of driver. Don't mix the positive pole and negative pole.
5. Using the screwdriver open the rear cover and take out of the driver to change a new one.
And make connection of the wires to AC driver, please follow: Brown to connect "L", Blue to connect "N", Yellow to connect "", And the red or white wires of DC connect the positive pole of driver, then the black wire connect the negative pole of driver. Don't mix the positive pole and negative pole.
Flood lamp Fixtures's dimension
Note
1. Any wire damage should be replaced by qualified professional person to avoid dangerous occurs.
2. Please cut down the input power supply once the lamp works abnormally.
3. Please take measures of lightning protection, and ensure the Input voltage is stable.
4. Please put the lamp under the dry, ventilated and clean circumstance, and clean and maintain regularly.
5. Don't disassemble by yourself; avoid the electric shock as there is high voltage inside the lamp.
