20w Rechargeable Led Floodlight Ac100v-240v
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Main features of 20W rechargeable LED floodlight
3) High-capacity Li-battery could provide continuous 8 HOURS' illumination
Photo of 20W rechargeable LED floodlight
Adapter's Technical Parameters
LED Lamp's Parameters
Emgerent Rescue LED Flood Light distribution curve and Effective AAI Figure
Outline Dimension Drawing
Packing Data sheet of this series Rescue LED floodlight
1) This product can be used as two function of Outdoor General Lighting (white color light) and also Rescue flash light (red color light).
2) Product bear under voltage function, when the battery voltage is lower than the setting value, the output disconnect that could protect the battery from damage.3) High-capacity Li-battery could provide continuous 8 HOURS' illumination

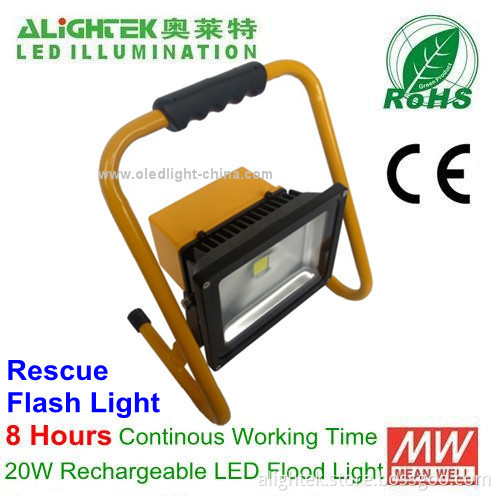

Photo of 20W rechargeable LED floodlight
Application of 20W rechargeable LED floodlights
Outdoor activities, Machinery and equipment maintenance, Car maintenance, Rescue emergency alarm signal etc...
Adapter's Technical Parameters
| Input Voltage | AC100 -240V | |
| OutputVoltage | 12±0.5vDC | 24±0.5vDC |
| Efficiency | ≥85% | |
| Car Charger Adapter | Truck Output Voltage: 10-28vDC | |
| Car Output Voltage: 10-16vDC | ||
| Output Current: 1.6A | ||
Li-battery's Technical Parameters
| Cyclelife of battery | ≥350times | |
| Charging Time (Battery Capacity) | 6 Hours (8800mAh) | |
| Continuous Working Time | 8 HOURS | |
LED Lamp's Parameters
| LED lamp Parameters | ||
| LED ChipsQuantity | 1 piece | |
| System Consumption Power | 20W | |
| LED LuminousEffieiency | 70-80lm/W | |
| Colour Temperature (LED colour) | 2700 ~ 7000K + (Red / Orange) | |
| Lamp'sInitial Luminous Efficiency | ≥70lm/W | |
| LumenMaintenance | 70%(50000Hrs) | |
| ColourRendering Index | Ra≥70 | |
| OperatingTemperature | minus 40℃ ~ +45℃ | |
| StorageTemperature | minus 40℃ ~ +70℃ | |
| IP Grade | IP65 | |
| Lifetime | 50,000Hrs | |
| Lamp BodyMaterial | Aluminium | |
| Color of lampshell | Black, Sliver lamp body | |
| ApplicanceClass | Class I | |
Emgerent Rescue LED Flood Light distribution curve and Effective AAI Figure
Outline Dimension Drawing
Packing Data sheet of this series Rescue LED floodlight
Note: Due to the floodlight have GLASS accessories, Lithium ion battery; so it needs to hand with care, while in the process of transport, storage. Don't stress it heavily.
ALIGHTEK has more than 5 years experience in the filed of LED floodlight, we have developed a variety of flood lamps, such as PIR sensor series, Module floodlight series, RGB LED floodlight series and also this series Portable & Rechargeable Floodlight LED & the widely used normal LED floodlight.
ALIGHTEK has more than 5 years experience in the filed of LED floodlight, we have developed a variety of flood lamps, such as PIR sensor series, Module floodlight series, RGB LED floodlight series and also this series Portable & Rechargeable Floodlight LED & the widely used normal LED floodlight.
