Features of 50W Wall mounting LED Floodlight
This LED flood lamp is a new version of flood lighting that made with the most advanced COB LED technology. Making a comparison with the conventional floodlights, it can be much better heat dissipation, very less lumen decrease, consistent color beam emitting, no ghost image, more than 80% energy saving, eco-friendly, longer lifetime. Moreover, the products made with the branded American LED Chip and quality LED driver made from Taiwan. QUALITY LED FLOODLIGHTS. It's a good choice to cooperate with us if you want to find a good partner to save you more time to expand the markets with"Zero complaint" from customers.
This LED flood lamp is a new version of flood lighting that made with the most advanced COB LED technology. Making a comparison with the conventional floodlights, it can be much better heat dissipation, very less lumen decrease, consistent color beam emitting, no ghost image, more than 80% energy saving, eco-friendly, longer lifetime. Moreover, the products made with the branded American LED Chip and quality LED driver made from Taiwan. QUALITY LED FLOODLIGHTS. It's a good choice to cooperate with us if you want to find a good partner to save you more time to expand the markets with"Zero complaint" from customers.
Quality assured with enough time anging test to our LED floodlights.
The BEST LED Driver and LED Chip we use
LED Driver Parameters
Light fixture Parameters

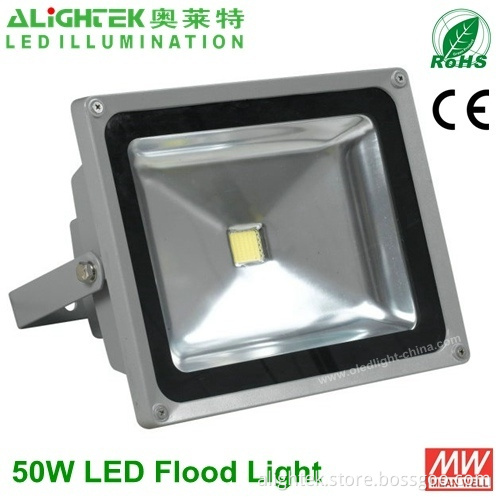

Real Photo of 50W Wall mounting LED Floodlight
This LED flood lamp dimension
Three Installation ways as below,
The BEST LED Driver and LED Chip we use
LED Driver Parameters
| Power | 50W |
| Input Voltage/Frequency | 85-265VAC/ 50-60Hz |
| Input Current(Typ) | 0.7A MAX |
| Output Voltage | 30-36V |
| Output Current | 1.5A |
| Efficiency(Typ) | 86% |
| Power Factor(Typ) | PF over than 95 |
Light fixture Parameters
| LEDChips QuantityLED | 1 Piece |
| System Consumption | 50W |
| LED Luminous Efficiency | 80-100Lm/W |
| Color Temperature | 2700K - 7000K |
| Lamp's Initial LuminousEfficiency | ≥70Lm/W |
| Lumen Maintenance | 70%(50000Hrs) |
| Color Rendering Index | Ra≥80 |
| Beam Angle | 120°or 60° |
| Operating Temperature | -40℃ +45℃ |
| Storage Temperature | -40℃ +70℃ |
| IP Grade | IP65 |
| Life-span | 50000Hrs |
| Materials | Aluminium |
| Appliance Class | ClassⅠ |
| The color of the lamp shell | Black/Silver |
| Power line | 1 mm2 The three wires |
| Package for total 2pcs 50W Wall mounting LED Floodlight | |
| Lamp inner package size | 185*325*265(mm) |
| Outer Carton package size | 355*400*285(mm) |
| Packing Weight of the radiator | 7.35KGS |
| Net weight | 3.10KGS |
Real Photo of 50W Wall mounting LED Floodlight
This LED flood lamp dimension
Three Installation ways as below,
Instruction for maintaining and repairing
1. The power must be cut off before maintaining.
2. Regularly clean the glass of the floodlights to ensure the good light transmittance
3. Periodically clean the housing and radiator to make sure the good performance of heat dissipation.
4. Forbid to use water or other corrosive liquid to clean, must use dry cloth.
5. Using the screwdriver open the rear cover and take out of the driver to change a new one. And make connection of the wires to AC driver, please follow: Brown to connect "L", Blue to connect "N", Yellow to connect "", And the red or white wires of DC connect the positive pole of driver, then the black wire connect the negative pole of driver. Don't mix the positive pole and negative pole.
The Flood Light Distribution
This LED floodlight's Effective Figures.
Applications:
Widely used for indoor and outdoor illumination as Wall wash illumination, swimming pool illumination, building frontage illumination, landscaping lighting, parking lot lighting, billboard illumination; Gymnasiums luminaries, factory luminaries, advertisement/billboard luminaries, Garden luminaries and other LED luminaries.
