Description of 10W PIR Sensor LED floodlight
Human body infrared sensor LED floodlight is a new type of LED illumination light source which developed on the basis of the traditional flood light, compared with the traditional floodlight, high thermal conductivity, light failure is small, light color purity, no ghosting, energy saving, environmental protection, long service life, etc, the products adopt constant current constant voltage control, power efficiency is high, the second is in a state of energy saving lamps and lanterns of normal environment, when the human body through infrared photosensitive area (refer to the technical parameters), the sensor receives the human body after lit LED lights turning on the power supply, delay some time later, did not receive the body signals, lamps and lanterns is automatically shut down, in a state of energy saving.

knob function on the lamp body

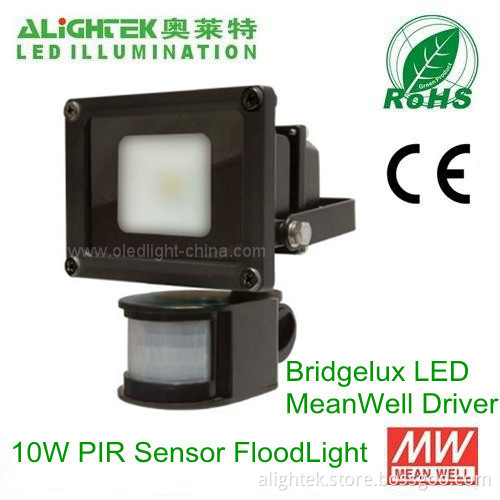

Photo of 10W PIR Sensor LED floodlight


Features of 10W PIR sensor LED flood light

1. High efficiency & energy saving. Under the condition of the same illumination, it saves more than 70% energy compared with the traditional lamp.

2. Long life span, using semiconductor chip as the light resource, the life can be over 50,000hrs.

3. No UV & IR. It won't distribute ray radiation

4. Eco-friendly, No Hg & Xe ,or other harmful element. Recyclable, also it won't generate EMI.

5. High performance external constant current drivers,no stroboscopic, good for eyesight protection;

6. Patent integrated light sources, high quality Bridgelux chip, high Light effects, high color rendering index.

7. Thermal design, integration of the advanced die-casting forming, small contact resistance, high cooling efficiency

8. Have infrared body sensing feature;

9. Protection level reaches IP65.

LED Driver Parameters

Power	10W
Input Voltage/Frequency	85-265VAC/ 50-60Hz
Input Current(Typ)	0.1A
Output Voltage	30-36V
Output Current	280MA
Efficiency(Typ)	86%
Power Factor(Typ)	PF86

Light fixture Parameters

LEDChips QuantityLED	1 Pcs
System Consumption	10W
LED Luminous Efficiency	80-100Lm/W
Color Temperature	2700K ~ 7000K
Lamp's InitialLuminousEfficiency	≥70Lm/W
Lumen Maintenance	70%(50000Hrs)
Color Rendering Index	Ra≥70
Beam Angle	120°or60°
Operating Temperature	-40℃ +45℃
Storage Temperature	-40℃ +70℃
IP Grade	IP65
Life-span	50000Hrs
Detection distance 25℃	4-6M(<25℃)
Time-delay	5sec to 10min
Detection range	120°
Rated load	300w
Materials	Aluminium
Appliance Class	ClassⅠ
The color of the lamp shell	Black / Silver
Power line	0.75mm2 The three wires

Sensor floodLight distribution curve


The effective average illuminance figures


Installation Instructions of 10 Watts sensor LED flood light

1. Install lamps and lanterns is fixed on the fixed frame (wall) on the lamp bracket and fixed frame three screws

2. Working and Storing in the normal temperature.

3. When installing the products,the point ofconnecting of wires must be closed very well toavoid theleakage.

4. Must take some waterproof protection when connect the outside power wires.

5. Prohibit violating any fire protecting rules when using.

6. Please ask the professional electrician when installing. And the ways of connecting of three wires is that Brown is live wire, Blue is null line, Yellow is earth wire.

Fixtures Size and Installation diagram of sensor led floodlights

Lamp inner package size	135*145*215(mm)
Outer Carton package size	305*690*460(mm)
Packing Weight of the radiator	20.5Kg
Net weight	0.75Kg

Instruction for maintaining and repairing

1. The power must be cut off before maintaining.

2. Cleaning the glass of the product in regular time to ensure the good efficiency.

3. Cleaning the housing and radiator in regular time to ensure the good performance of heat sinking.

4. Forbid to use water or other corrosive liquid to clean,must use dry cloth

5. Can use the screwdriver open the cover and take out of the driver to change a new. And connection of the wires of AC driver please follow below; Brown to connect "L", Blue to connect "N", Yellow to connect "And the red or white wires of DC connect the positive pole of driver, and the black wire connect the negative pole of driver. and don't mix the positive pole and negative pole.

Note

1.Any wire damage should be replaced by qualified professional person to avoid dangerous occurs.

2.Please cut down the input power supply once the lamp works abnormal.

3.Please take measures of lightning protection, and ensure the Input voltage which is stable.

4.Please put the lamp under the dry, ventilated and clean circumstance, and clean and maintain regularly.

5.Don't disassemble by yourself, avoid the electric shock as there is high voltage inside the lamp.
