Portable Rechargeable 10w Led Floodlight For Mobile Useage
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Description of 10W rechargeable led floodlight

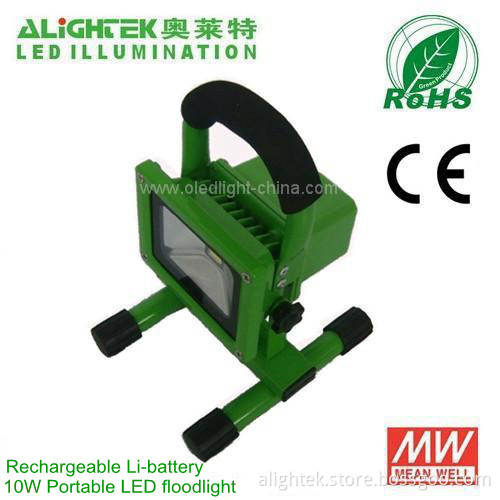

Photo of our multifunctional 10w rechargeable LED flood light
Features of thisrechargeable 10W LED floodlight
7) Product bear under voltage function, when the battery voltage is lower than the setting value, the output disconnect that could protect the battery from damage.
8) Protection level reaches IP65.
Rechargeable LED floodlight's charger and adapter
Adapter's Technical Parameters OF rechargeable 10W LED floodlight
LED Lamp's Parameters
Rechargeable LED Flood Light distribution curve and Effective AAI Figure
Outline dimension
Packing Details
ALIGHTEK has a series different types of LED floodlight to meet different customer's multiple needs. Our main floodlights including Portable & rechargeable LED floodlight, PIR sensor LED flood lamp, RGB LED projector light and the NEW modular LED flood light which could be better heat dissipation with longer lifespan.
This 10W portable LED floodlight is a multipurpose portable & rechargeable floodlight LED. New appearance, compact structure, easy to carry. With charging and discharging indicator: red light means charging and green light means full power. High efficiency integrated light source of LED and PERFECT IC of power management ensure the stabilization of constant electrical current output for extend the life of LEDs. High power capacity Li-battery could provide over continuous 4 hours' illumination, the protection fender itself could prevent battery core form any damage. (more than 350 times Circulating charging) rechargeable.
Photo of our multifunctional 10w rechargeable LED flood light
Features of thisrechargeable 10W LED floodlight
1) This product can be used as two function of Outdoor General Lighting (white color light) and also Rescue FLASH light (red color light).
2) This hand-held LED floodlight no needs to connect the battery, (another using selection) just use the 12vDC power supply to get the two function work normally
3) This item equipped with discharge characteristic under voltage lock to prevent the LED in low pressure conditions for the battery voltage of damage the LEDs.
4) This featured rechargeable floodlight LED item equipped with discharge undervoltage lockout to prevent the LED been damaged because the self-recovery of battery voltage.
5) This product driven by Li-ion battery and it has the function of Lithium battery charge management.
6) Patented integrated light source, high quality Bridgelux chip, high light efficiency, high colour dendering.3) This item equipped with discharge characteristic under voltage lock to prevent the LED in low pressure conditions for the battery voltage of damage the LEDs.
4) This featured rechargeable floodlight LED item equipped with discharge undervoltage lockout to prevent the LED been damaged because the self-recovery of battery voltage.
5) This product driven by Li-ion battery and it has the function of Lithium battery charge management.
7) Product bear under voltage function, when the battery voltage is lower than the setting value, the output disconnect that could protect the battery from damage.
8) Protection level reaches IP65.
Rechargeable LED floodlight's charger and adapter
Adapter's Technical Parameters OF rechargeable 10W LED floodlight
| InputVoltage | 100 -200V | |
| OutputVoltage | 12±0.5vDC | 24±0.5vDC |
| Efficiency | ≥85% | |
| Car Charger Adaptor | Truck Output Voltage 10-28vDC | |
| Car Output Voltage 10-16vDC | ||
| Output Current 0.7A | ||
Li-battery's Technical Parameters
| Cyclelife of battery | ≥350times | |
| Charging Time (Battery Capacity) | 6~7H(4400mAh); 3~3.5H(2200mAh) | |
| ContinuousWorking Time | ≥4H(4400mAh); ≥2H(2200mAh) | |
LED Lamp's Parameters
| LED lamp Parameters | ||
| LED ChipsQuantity | 1 piece | |
| WorkingVoltage | DC10-16V | DC10-28V |
| SystemConsumption Power | 10W | |
| LED LuminousEffieiency | 70-80lm/W | |
| ColourTemperature | 2700 ~ 7000K | |
| Lamp'sInitial Luminous Efficiency | ≥70lm/W | |
| LumenMaintenance | 70%(50000Hrs) | |
| ColourRendering Index | Ra≥70 | |
| OperatingTemperature | minus 40℃ ~ +45℃ | |
| StorageTemperature | minus 40℃ ~ +45℃ | |
| IP Grade | IP65 | |
| Lifetime | 50,000Hrs | |
| Lamp BodyMaterial | Aluminium | |
| Color of lampshell | Black or Silver | |
| ApplicanceClass | Class I | |
Rechargeable LED Flood Light distribution curve and Effective AAI Figure
Application
Outdoor activities, Machinery and equipment maintenance, Car maintenance, Emergency lighting
Rescue emergency alarm signal.
Production Photo of portable LED work flood light
Production Photo of portable LED work flood light
Outline dimension
Packing Details
ALIGHTEK has a series different types of LED floodlight to meet different customer's multiple needs. Our main floodlights including Portable & rechargeable LED floodlight, PIR sensor LED flood lamp, RGB LED projector light and the NEW modular LED flood light which could be better heat dissipation with longer lifespan.
