Outdoor Waterproof Silicon Sleeved 120pcs/m Led Ribbon Smd3014 Top View

- Uniform colour, Hollow Silione sleeved
- Eco-friendly, Energy saving, dimmable
- Variuos colors and wide range of color temperature (2300K ~ 20000K)
- Double faced adhesive tape back makes for easy installation
- Flexible linear lighting, can be cut by unit & connected by accessories/connectors
- Standard 5m per reel, customized length are available
- 5cm cuttable with 6pcs SMD3014 LEDs


Main Parameter of 24vDC waterproof SMD3014 LED ribbon flex

LED TYPE	Top SMD3014 Epistar LED
Q'TY PERMETER	120pcs/meter
POWER CONSUMPTION	Max 72 watts (5meters)
INPUT VOLTAGE	DC24V
DIMENSIONS	10 mm Wide, 5m length
LUMEN PER LED	10 ~ 12 LM
DRIVER	100 watts 24V Power Supply Required (constant voltage)
IP RATING	Wateproof for outdoor or indoor usage
BEAM ANGLE	120*degrees
VIEWING ANGLE	Adjustableby Mounting Position
DIMMABLE	Yes
LIFESPAN	>50,000Hours
STANDARDS	CE,RoHS
HOUSING	Copper PCB
CONNECTOR	DC connector
OPTIONAL COLOUR	White,WarmWhite, Cool White, Red, Green, Blue, Yellow

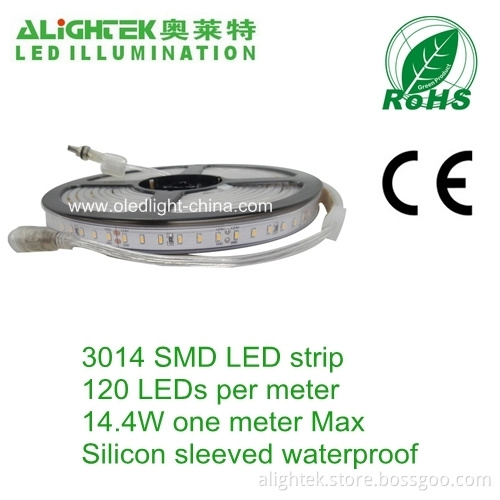

Photo of SMD3014 flexible light stripe with 600LEDs DC female male waterproof connectors



Dimension Drawing of 120pcs/meter 3014 SMD LED strip




How to identify the LED strip lights' waterproof type IP55, IP65, IP67, IP68?

Common connectors of LED ribbon light flexible
