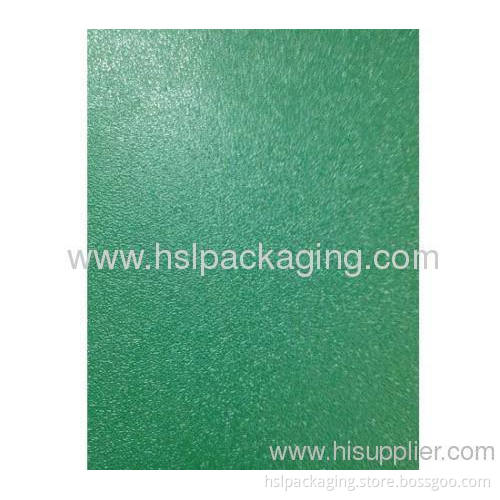

2mm,3mm,4mm,5mm Thickness Abs Sheet Material
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Product Characteristics:
1. Good dust-proof & antistatic effects;
2. Permanent antistatic & wearable coating layer;
3. Pass certificates of RoHS & REACH, nontoxic to human body;
4. Products withstand water or alcohol solvents ultrasonic cleaning and its static resistance keeps unchanged under different temperature & moisture
|
Products
Name
|
Width |
Thickness |
Color |
PVC |
0.1-0.8mm |
200-750mm |
All color |
PP |
0.2-1.5mm |
400-800mm |
|
PS |
0.2-1.5mm |
400-800mm |
Packaging: 50kg/roll Kraft paper for outer packaging, on pallets, pallet with shrinking film
Property |
Unit |
Test Method |
Test Condition |
ABS |
Tensile Strength |
kg/cm
(Mpa)
|
ASTM D-638 ( ISO527) |
23°C |
510
(50)
|
Flexural Strength |
kg/cm2
(Mpa)
|
ASTM D-790 ( ISO178) |
23°C |
850
(83)
|
Flexural Modulus |
kg/cm2 ( Mpa) |
ASTM D-790 ( ISO178) |
23°C |
27000
(2650)
|
Rockwell Hardness |
R-Scale |
ASTM D-785 ( ISO2039/2 ) |
23°C |
R-110 |
Izod Impact Strength |
kg-cm/cm ( J/m ) |
ASTM D-256 ( ISO R180 ) |
23°C 1/4'' THK |
20
(196)
|
Heat Deflection Temperature |
ASTM D-648 (ISO 75/A) |
Unannealed 18.6kg/cm2 ( 1/2'' THK ) |
89 |
|
Annealed ( 80×8Hr ) |
104 |
|||
Melt Flow Index |
g/10 min |
ASTM D-1238 ( ISO1133 ) |
220×10Kg ( 98N ) |
17 |
Specific Gravity |
ASTM D-792 ( ISO1183 ) |
23/23 |
1.08 |
|
Flammability |
UL-94 |
