Flexible Heat Resistant Stainless Steel Braided Silicone Tube
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description

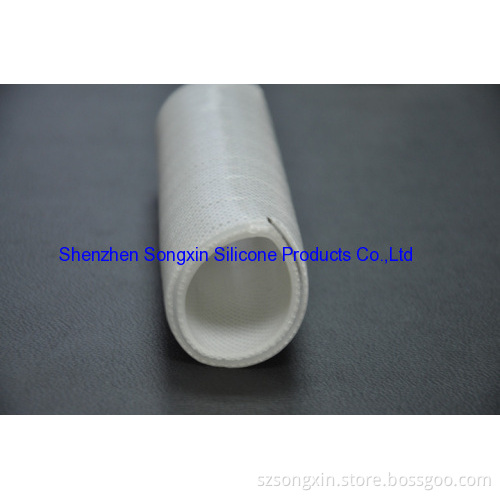

FLEXIBLE SILICONE TUBES WITH FOUR POLYESTER FABRIC REINFORCEMENTS AND DOUBLE STAINLESS STEEL WIRE SPRING ENCASED INSIDE THE HOSE WALL.
SPECIFICATION: | |
APPLICATIONS |
Specially recommended for the transport of liquid or semi-liquid fluids in the food, cosmetic, chemical and pharmaceutical industries.
This is a hose with a high level of strength. It is extremely flexible, even in large diameters. It has been designed for use in specific points where there may be sudden high pressure surges (hammering).
This hose is the one with the highest level of strength and robustness of our range.
|
CONSTRUCTION |
Platinum-cured silicone with four polyester fabric reinforcements and double stainless steel wire spring encased inside the hose wall.
It can be equipped with 316L stainless steel fittings on each end with a rugosity value of less than 0.8µm (or 0.5µm upon request).
|
TEXTILE REINFORCEMENT |
4 polyester fabric reinforcements |
APPEARANCE |
High level of transparency and smooth inner appearance. Translucent, white or colored and smooth outer appearance. |
TEMPERATURE |
-60ºC / +180ºC (-76ºF / +356ºF)
It may reach up to 200ºC (392ºF) during short periods of time.
|
DIMENSIONS |
The standard manufacturing length is 4 meters long (13.12ft), but in specific diameters a length of 6 meters (19.69ft) can be manufactured. |
PRESSURE |
Working and bursting pressure determinate with pressure tests according ISO 1402/2009.
The vacuum resistance for this hose is 0.91 bar (13.23 psi).
|
TECHNICAL DETAILS |
- This reference meets the 1935/2004/EC Regulation and European Council Resolution AP 2004 (5) – Silicones.
- This reference is in compliance with FDA 21 CFR 177.2600 (Food and Drug Administration) and BfR Recommendation XV.
- Manufactured with silicone elastomer in accordance with EU Directive 2008/95/ECC of restriction of the use of certain hazardous substances (RoHS).
- Sanitary Standard 3-A 18-03 Class I
- Sanitary Standard 3-A 62-02 (fitted hoses)
|
PROPERTIES |
- Odorless, tasteless and completely non-toxic.
- Excellent resistance to thermal aging and oxidizing agents (oxygen, ozone, UV)
|
