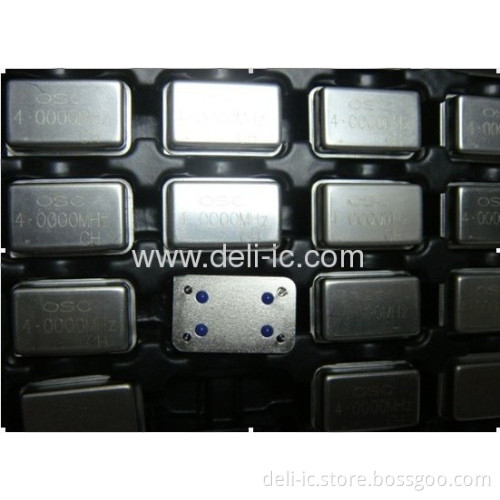

High-reliability Quartz crystal oscillator OSC DIP OSC14 1~170Mhz
1.High Frequency
2.High reliability
3.Tri-state function
High-reliability Quartz crystal oscillator OSC DIP OSC14 1~170Mhz
1.High Frequency
2.High reliability
3.Tri-state function
Quartz Crystal Oscillator and Resonator
HIGH QUALITY
COMPETITIVE PRICE
QUICK SHIPMENT
BEST SERVICE
COMPETITIVE PRICE
QUICK SHIPMENT
BEST SERVICE
High-reliability Quartz crystal oscillator OSC DIP OSC14 1~170Mhz
.quartz crystal oscillator OSC DIP OSC14 1-170Mhz
Output Type: CMOS
Output Load: 15pF 15pF,30pF 15pF,50pF
Osdillation Mode: Fundamental/3rd Overtone
Supply Volatage: 1.8V 2.5V,2.8V,3.3V 5V
Frequency Range: 1~170Mhz
Frequency stability: ±25ppm,±50ppm
Operating Temperature Range: -10~+70℃,-40~+85℃
Storage Temperature Range: -55~+125℃
Voltage Vol{Max.} /Voh{Min.}: 0.1VDD/0.9VDD
Rise{Tr}/Fall{Tf}Time: 10ns{1~10MHZ},7ns{20~50MHZ},5ns{>50HMZ}Max
Supply Current: 20 mAMax
Symmetry: 40~60%
Start-up Time: 10 ms Msx
Phase Jitter{12KHZ~20MHZ}: 1ps Max
Aging (at 25 oC) : ± 3 ppm / year Max
