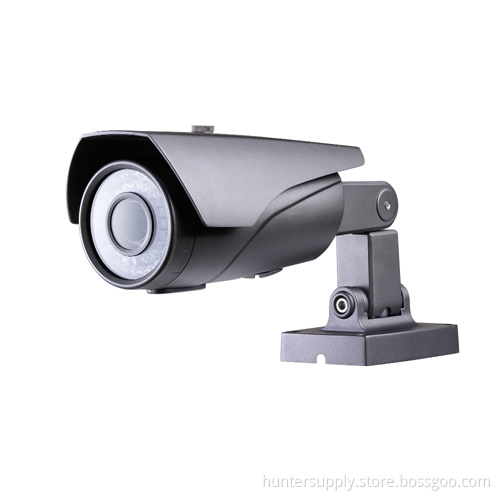

Ap-w2011 Ir Waterproof Camera

product name:AP-W2011 IR waterproof camera




￠42pcs IR leds, 40Meters.
Lens 4-9mm/2.8-12mm/3.6-16mm optional
Waterproof Grade : IP67
External / Internal OSD control
HLC,BLC,AGC,BWC
Motion Detection ,Privacy masking
Anti-IR Diffusion and fog , DualWindows Structure
Video test poort , IR Cut Filter optional
Sony Super HAD II / Effio-E/ Effio-P optional
3D-DNR ,D-WDR
DC24V/AC12V double power design

Item	AP-W2011
System	PAL / NTSC
Image Sensor(CCD)	1/3  Sony  EFFIO  E  CCD
Picture Elements	PAL: 976(H) x 582(V); NTSC: 976(H) x494(V)
Video output	1.0Vp-p, 75II Composite, BNC x 1
Horizontal resolution	700TVL
S/N Ratio	>=58dB( AGC  OFF )
illumination	Color :0.3 ( Lux/F1.2 ,AGC ON )
Minimum illumination	0.000 Lux (  IR  on )
Electronic Shutter	PAL= 1/50 -- 1/10,0000S ,NTSC=1/60--1/10,0000S
D/N	D/N auto converter ,  IR cut  filter  ( with  IR  cut  function )
D/N Switching  method	D/N  Controlled by  CDS
D/N Switching  time	000--255
White Balance	ATW/Manual/Auto
Gamma Ratio	>=0.45
OSD	Built  in
WDR	D-WDR
DNR	2D-DNR
Privacy  Zone	ON/OFF
Sync system	Internal/External
Infrared	42PCS
Smart  IR	YES
Infrared Wavelength	850nm
IR  Distance	40m
Lens Mount	Standard   2.8-12 mm varifocal lens ( 4-9mm/3.6-16mm  optional )
Operating Temperature	Outdoor: -10℃ to 50℃
Humidity	0 to 95% RH (non-condensing)
Power supply	DC12V /AC24V
	1000mA
Weight	900G
Size	273mm( L) * 97mm(W) *90mm ( H)
