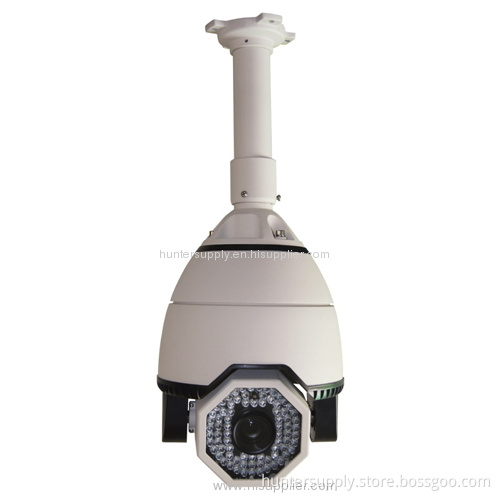

27x Zoom High Speed Dome Camera

Products :IR high speed dome camera

1.Outdoor 7 inch high speed dome camera,Metal double cover
2.Use high quality components,high&minute substep into TV,long life Conductive slip ring,High-qualitybelts,Stable operation,high reliability
3.Stable running,none dithering under any speed
4.Cover use high intension Aluminum material,with defend impact,shielding and heat dissipation funcitons,defend levels reach to IP66
5.Internal setting data not lose when electronic cut
6.Triple lightning protection technology,effectively raising the speed dome mine and anti-jamming capability

Model NO.	AP-IR500-27
Image sensor	1/4' CCD
Signal model	PAL/NTSC
Horizontal resolution	480TVL/540TVL/ 650TVL
Effective pixel	752(Horizontal)ⅹ582(Vertical)
Minimum illumination	Color to B/W, Color0.05Lux, B/W0.001Lux
S/N radio	≥ 60dB(Enhanced)
Backlight compensation	On/Off
White balance	Auto
Electuonic shutter	1/50~1/12000seconds
Focus length	3.2~86.4mm
Optical focus	27X
IR Effect Distance	100M
Focus	Auto/manual,take high-performance DSP to realise complete digit and ultra-high speed focus function
Presets	256
Patrol track	4groups,each can record 100 actions
Cruise track	Total 30 presets can join cruise,can setting the presets'residence time
Other Scan	Support Horizontal scan,deuce area scan,scan random
Rotation Range	Horizontal360°unlimted rotation,Vertical180°,auto reversal
Rotation speed	Horizontal&Vertical Min 0.01°\Max300°/S
Communications	PELCO D,PELCO P
OSD	YES
Temperature control	Optional
Power supply	AC12V-24V\DC12-24V
Dimension	7inch
Material	Aluminum shell,waterproof IP66
Work environment	-20℃~+50℃(Select temperature control accessories),<95%RH
