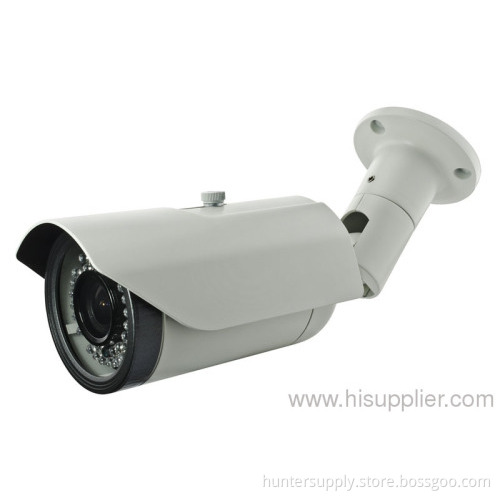

Products : High Resolution CMOS sensor camera

High Resolution CMOS Sensor Camera
HighResolutionCMOSsensorcamera

1. 1/2.8" Panasonic Progressive Scan Color CMOS Sensor
2. 1080 (1920x1080)@30fps
3. TV out (BNC) with NISC/PAL selectable
4. Megapixel HD CCTV (BNC) Output
5. 2.8-12mm 2.0 megapixel auto IRIS lens
6. 42pcs IR LEDs, 30m IR distance
7. PIP(Full Image /Zoom Image)
8. Flicker suppression
9. 3D DNR, Digital WDR, Full OSD and OSD control panel inside
HighResolutionCMOSsensorcamera

Imaging Sensor	1/2.8 " 2.2Megapixel CMOS
Scanning System	Progressive Scan
Number of active pixels	1944(H) X 1092(V) = 2, 122, 848(pixel)
Total number of pixels	2010(H) X 1108(V) = 2, 227, 080(pixel)
S/N Ratio	More than 50dB
Video Output Mode	1080P(1920 X 1080) 25P/30P
Video Output Level	HD-SDI / 1.0 Vp-p (75Ω, Composite) NTSC/PAL(Selectable)
Min. Illumination	1.0Lux(Color), 0.5Lux(BW), 0.02Lux(Sens-up x60)
O.S.D	Built-in
Electronic Shutter Speed	(NTSC : 1/30sec ~ 1/50, 000sec) (PAL : 1/25sec ~ 1/50, 000sec)
White Balnace	AWB /AWC-SET / MANUAL / INDOOR / OUTDOOR
Backlight Compensation	BLC / HSBLC / Off
ACCE(Adaptive Color&Contrast Enhancement)	Low /Middle / High / Off
AGC	Low /Middle / High
Adjust	SHARPNESS / MONITOR / LSC / NTSC / PAL
Language	English (Selectable)
Day & Night	Auto / B.W / Color / EXT (Selectable)
2D/3D-NR	2DNR / 3DNR / SMART NR
Digital Zoom / PIP	On / Off (x2 ~ x64)
Privacy Masking	On / Off (8 Zone Selectable)
Motion Detection	On / Off (3 Zone Selectable)
Defect	LIVE DPC / STATIC DPC
Sens - up(Frame Integration)	On/ Off (Selectable limit ~ x60)
D - EFFECT	Freeze / Mirror / D-Zoom / NEG. IMAGE
Defog	High/Middle/Low/Off selectable
Communication	RS - 485 [Baud Rate : 2400 ~ 57600 ]
Lens	2.8-12mm
IR LED	42pc, 30m IR distance
