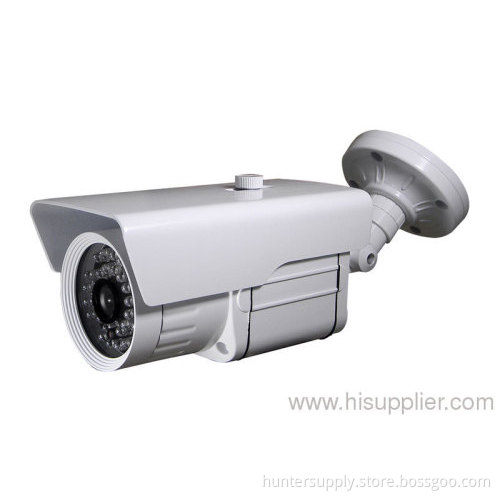

 Products :High definition  infrared  cameras


                           High  Definition  infrared   cameras
Highdefinitioninfraredcameras
(1)Super Resolution HD-SDI 1080P 1/2.8  inch2.2 Megapixel CMOS progressive color sensor
(2)30 pcsleds; 20mIR night vision distance
(3) IR-CUT function and BNC*SDI output
(4) High sensitivity in the dark environment, 0.001lux Low illuminance
(5)Standard Lens:6 mm
(6) Smart Light Control to avoid over-exposure
(7) Day and night features for 24-hour surveillance
(8) waterproof IP66, suitable for indoor and outdoor use
Highdefinitioninfraredcameras
Imaging Sensor
1/2.8 "Panasonic CMOS
Total Pixels
2010(H) x 1108(V) = 2,227,080 (pixel)
Active pixels
1944(H) x 1092(V) =  2,122,848 (pixel)
Scanning system
Progressive Scan
Resolution
Digital ; 1920x1080p(1080p/30fps) , 1280x720p(720p/60fps)
Min. illumination
Color DSS : 0.002 lux , BW DSS : 0.001 lux
S/N Ratio
More than 50dB (AGC off)
Video Output
HD-SDI
Video Output
Analog : NTSC, PAL(w/o WDR)
Brightness
0 ~ 20
Shutter
AUTO/MANUAL(1/30(25)~1/6000)
Sens-up
OFF/x2/x3/x4/x5/x6/x7/x8
AGC
0 ~ 20
Backlight
OFF/HLC/BLC/WDR
Day&Night
AUTO/COLOR/B&W/EXT.
White Balnace
AUTO/AUTO ext/PRESET/MANUAL
DNR
OFF/LOW/MIDDLE/HIGH
Sharpness
0 ~ 10
Mirror
ON/OFF
FLIP
ON/OFF
D-WDR
OFF/LOW/MIDDLE/HIGH
Shading
ON/OFF
Privacy
ON(32 Points)/OFF
Frame Rate
25 FPS/30 FPS
CVBS
NTSC/PAL
Communication
RS-485(Baud Rate:2400-115200)
Lens
6 mm 2 Megapixel fix Lens
IR LED
30pcs
