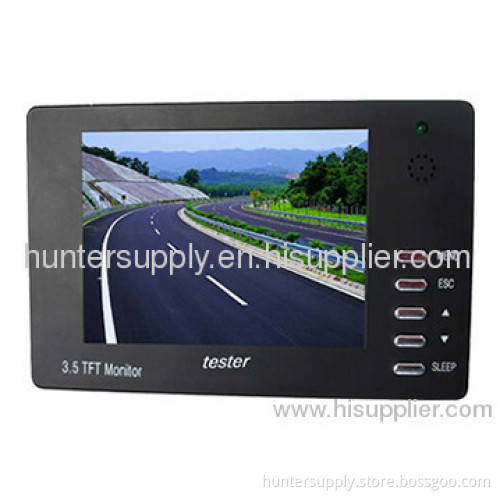

3.5 Inch Monitor Cctv Camera Tester

1.Portable wrist strap design, 3.5 inch TFT HD monitor ( video input / output )

2.Automatic adaptation of the NTSC/PAL image, without the need for manual setting

3.Power saving mode and the display screen can be in standby state

4.The appearance of small, highly integrated, wristband portability

5.Audio test function, a built-in 0.5W speaker, audio input / output

6.Support DC12V output voltage, convenient to the camera power supply

7.Built-in rechargeable DC3.7V/2200mAh batteries, automatic charging

8.Power supply : the battery power supply, computer USB power supply, DC5V/2A power adapter

9.Particularly suitable for camera effects, engineering installation lens range, camera angle demonstration, adjusting and positioning, time-saving, convenient cell characteristics:

10.Standard capacity: 2200mAh

11.Standard voltage: 3.7V

12.The maximum charging voltage: 4.25V

A.Input voltage: 5V ± 10% Current :2A (electric current )

B. Battery rechargeable lithium battery battery: DC3.7V ( 2200mAh )

C.Video System :NTSC/PAL ( automatic adaptation) ( auto-identity )

D.Video output mode : 1.0Vp-p ( full ) ( Full )

E.Louder speaker : 8 /0.5w

F. Charge time: 5-6 hours

G.Power output : 12V/350mA

H.Working temperature :-20℃ ~ +60 ℃

I. Packing size: L185mm*W145mm*H80mm

J.Net weight: 163g
K.Gross weight: 595g
