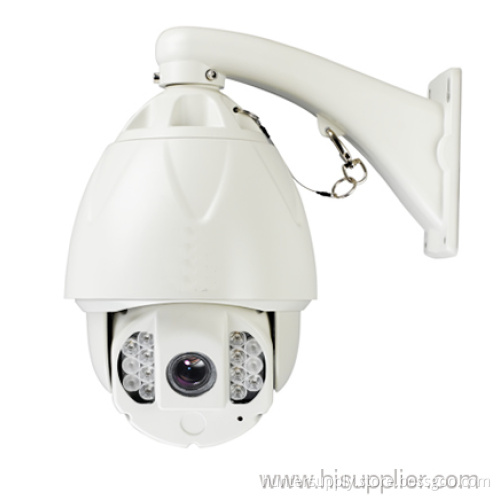

Products :Megapixel IP IRHigh Speed Dome

Megapixel IP IR High Speed Dome
MegapixelIPIRhighspeeddome

H.264 compression

1/3 Sony Super Had CCD

14 pcs IR led and 120-150m IR view distance

27x,30xZOOM ,from3.6-97.2mm

D1IP High speed dome(outdoor use)

Pan speed : 1-300°/STilt speed :45°/S

Preset: 128

Real time transmission up to 30FPS@

InterchangeableLensesAvailable

Two-way audio supported

Hardware motion detection supported

DC 24V 4A

Wall mount supported

Onvif compliant
MegapixelIPIRhighspeeddome

Model	AP-36HR
Device	1/3 SONY Super HAD CCD II 480/540TVL
Size	1/3 inch
Effective Pixels	D1:640480,CIF: 320240
Color	< 0.15 LUX
B/W	YES
IR Sensitivity	YES
IR Cut	YES
Lens	27/30*ZOOM, from 3.6-97.2mm
Viewing Angle	Pan:1-300°/s,tilt:1-45°/s(Horizontal)
Linux System	Internal Linux system
IR distance	120-150M
Motion Detection	Yes
Electronic Shutter	1/5-1/15,000 sec
BLC	Yes
AGC	Auto
White Balance	Auto
S/N Ratio	>50 dB
Compression	H.264
Picture Resolution	D1:704*576
Bit Rate	80 K~ 2.0 M bps
Image Frame Rate	30FPS
Compression	G.711
Two way audio	support
Alarm I/O	1 channel in/out put
Mount Types	Wall Bracket
Ethernet	Ethernet (10/100 Base-T),RJ-45 connector
Protocol	TCP,UDP,IP,HTTP,FTP,SMTP,DHCP,DNS,ARP,ICMP,POP3,NTP,RTP, and RTCP
Web Browser	Microsoft Internet Explorer 6.0 above
SDK	SDK-H
Security	Administrator password protection
Temperature	-30°~60°C
Humidity	-10~85%
Power Comsumption	96W (DC 24V,4A)
Dimension	323247cm
Weight	6.5kg
