Fr4 Rogers Immersion Gold 4 Layers Pcb Boards
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description

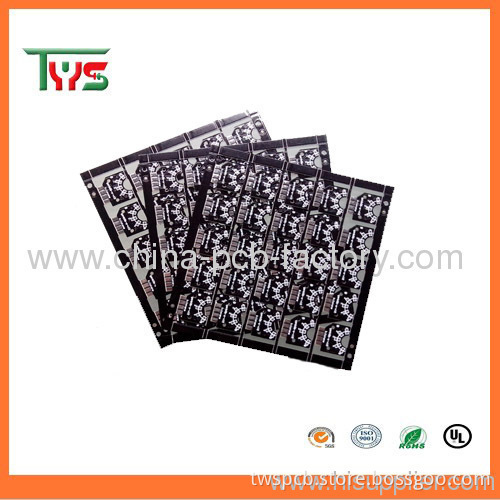

FR4 Rogers pcb board
1. pcb fabrication
2. 16years experience
3. 40,000square meters/month capacity
4. ISO& UL certifications
Specification
1. pcb fabrication
2. 16years experience
3. 40,000square meters/month capacity
4. ISO& UL certifications
OEM/ODM/EMS Services for PCB Assembly:
1. PCBA, PCB assembly: SMT & PTH & BGA
2. PCBA and enclosure design
3. Components sourcing and purchasing
4. Quick prototyping
5. Plastic injection molding
6. Metal sheet stamping
7. Final assembly
8. Test: AOI, In-Circuit Test (ICT), Functional Test (FCT)
9. Custom clearance for material importing and product exporting
Specification
| Types: |
Single-sided, Double-sided, Multi-layers (max 28 layers) and
Rigid-flexible PCB, Aluminium board
|
| Surface Finishing: |
HASL(LF), Gold plating, Electroless nickel immersion gold,
Immersion Tin, OSP(Entek)
|
| Base Material: | Polyimide(Kapton), Polyester(PET), Aluminium, FR4 |
| Copper Foil: | ED/RA |
| Min. Line Width: | 2 mil |
| Min. Line Spacing: | 2 mil |
| Min. Hole Size: | 0.2mm |
| Max. Board Size: | 800x400mm |
| Min. Board Thickness: | 0.1mm |
| Min. Solder Mask Thickness: | 10um |
| Solder Mask Types: | Green, yellow, black, white, blue, red and clear |
| Profiling: | Punching, Routing, V-cut |
| Soldering Thermal Resistance: | 300°C/10 seconds |
| Peeling Strength: | ≥1.4kg/cm |
| Surface Resistance: | 105mΩ |
| Insulation Resistance: | 105mΩ |
| Dielectric Strength: | 9.8x105v/cm |
| Flammability: | UL-94V-0 |
| Performance Test: | 100% electrical and electricity performance test |
