White Solder Mask Mc Pcb With Leds For Light
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description

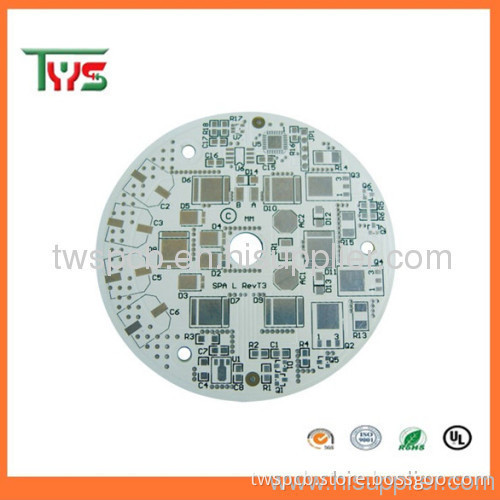

White solder mask mc pcb with leds for light
1. Professional manufacturer of PCB and PCB assembly, specialized in single-sided PCB, double-sided PCB, multilayer PCB, PCB layout and design and PCB assembly.
2. Material Type: FR4, CEM-1, non-halogen material, Aluminium Base, Cooper Base, high frequency material ,Thick copper foil, 94-V0(HB), PI Material, High TG:SL S1000-2,ITEQ:IT180.
3. Surface treatment: HASL, HAL LF, Immersion Gold, Immersion Tin, Immersion silver, Gold Finger, OSP.
Products are applied to a wide range of High-tech industries such as: LED, telecommunication, computer application, lighting, game machine, industrial control, power, automobile and high-end consumer electronics, ect. By unremitting work and effort to the marketing, products exports to American, Canada, Europe counties, Africa and other Asia-pacific countries
The quick-turn service
Rigid PCBcapability
| Laminates type | FR-4,CEM-1,CEM-3,BTResin, Teflon,PTFE, |
| Rogers,Aluminium,Tg130°C(150°C,170 °C,180 °C 210°C), Berquist, Thermagon,Alon.Polyclad | |
| Boardthickness | Min:2-Layer: 0.2 mm -6.0 mm 4-Layer: 0.40mm -8.0mm 6-Layer: 0.8 mm-8.0 mm 8-Layer: 1.0 mm -8.0mm 10-Layer: 1.2 mm -8.0 mm 12-Layer:1.5 mm -8.0mm Max: 8mm (0.3150") |
| Basecopper thickness | Massproduction: Min: 12um (1/3oz) Max: 140um (4oz) for inner layer;350um(10oz)for outer layer Sample: Max: 210um (6oz) for inner layer;450um(13oz) for outer layer |
| Min finished hole size | Bymechanical drilling: 0.15mm (0.006") |
| Bylaser drilling: 0.05mm (0.002") | |
| Aspectratio | 12:01 |
| Max panel size | Massproduction, 540mm × 740m (21.25" × 29.13") |
| Sample:700mm × 1100mm (27.56" × 43.3") | |
| Min line width/space | Massproduction: 3mil/3mil |
| Sample: | |
| Innerlayer: 0.0635mm/0.0635mm (0.0025"/0.0025") | |
| Outerlayer: 0.0585mm/0.0585mm (0.0023"/0.0023") | |
| Viahole type | Blind/Burried/Plugged |
| HDI/Microvia | YES |
| Surface finish | HASL/ Lead Free HASL |
| ImmersionGold / Silver / Tin | |
| FlashGold. Hard Gold plating | |
| Selectivethick Gold Plating | |
| GoldFinger (Gold thickness up to 3um) | |
| PlatingSilver (Silver through Hole, | |
| Carbonink, Peelable mark, OSP | |
| Solder mask | Allkinds of colour |
| LPI,Dry Film | |
| MinS/M pitch (LPI): 0.1mm | |
| Impedance Control | Singletrace or differential controlled |
| 50,60, 70, 100, 110, 120, 130 ±5% | |
| Minbonding pitch | 0.181mm(center to center) |
| MinSMT pitch | 0.400mm(center to center) |
| Minannular ring | 0.025mm |
| Outlinefinish type | CNCRouting; V-Scoring/Cut; Punch |
| Tolerances | MinHole registration tolerance (NPTH) ± 0.025mm Min Hole registrationtolerance (PTH) ± 0.075mm Min Pattern registrationtolerance ± 0.05mm Min S/M registration tolerance (LPI) ±0.075mm Scoring Lines ±0.15mm Board thickness (0.1 -1.0mm ) ±15% Board thickness(1.0 -6.35mm ) ±10% Board SizeRouted ± 0.1mm Board SizeScored ± 0.2mm |
| ElectricalTesting | Voltage 10V- 250V Continuity 10 - 1000Ohms |
We are the professional PCB (1-28 layers), FPC (1-10 layers) and Rigid-Flex (1-12 layers) manufacturer.
Description
1. Professional manufacturer of PCB and PCB assembly, specialized in single-sided PCB, double-sided PCB, multilayer PCB, PCB layout and design and PCB assembly.
2. Material Type: FR4, CEM-1, non-halogen material, Aluminium Base, Cooper Base, high frequency material ,Thick copper foil, 94-V0(HB), PI Material, High TG:SL S1000-2,ITEQ:IT180.
3. Surface treatment: HASL, HAL LF, Immersion Gold, Immersion Tin, Immersion silver, Gold Finger, OSP.
Application
Products are applied to a wide range of High-tech industries such as: LED, telecommunication, computer application, lighting, game machine, industrial control, power, automobile and high-end consumer electronics, ect. By unremitting work and effort to the marketing, products exports to American, Canada, Europe counties, Africa and other Asia-pacific countries
Advantage
1. PCB from factory directly
2. PCB which have the comprehensive quality control system
3. PCB with good price
4. PCB with quick turn delivery time from 48hours.
5. PCB with certification (ISO/UL/RoHS/SGS)
6. PCB with 10 years experience in exporting service
7. PCB is no MOQ/MOV.
8. PCB with high quality. strict test through AOI (Automated Optical Inspection),QA/QC, Flying Proble Test, E-test fixture.
2. PCB which have the comprehensive quality control system
3. PCB with good price
4. PCB with quick turn delivery time from 48hours.
5. PCB with certification (ISO/UL/RoHS/SGS)
6. PCB with 10 years experience in exporting service
7. PCB is no MOQ/MOV.
8. PCB with high quality. strict test through AOI (Automated Optical Inspection),QA/QC, Flying Proble Test, E-test fixture.
The quick-turn service
24 hours for 2-Layer sample
48 hours for 4-Layer sample
72 hours for 6-Layer sample
