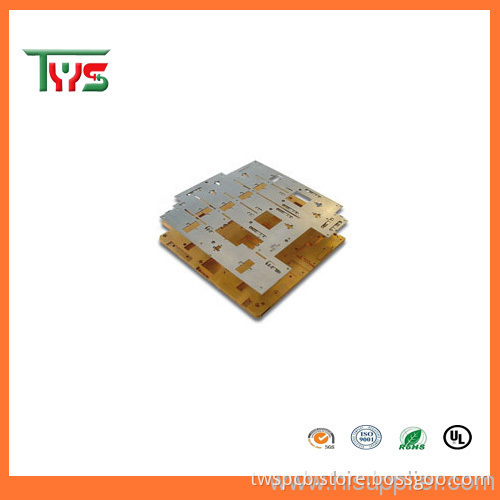

PTH PCB using all the available materials
Our company
We have abundant financial resources and advanced equipment, including Automatic electroplating production lines, Automatic Horizontal Lines and Lead-Free HAL lines.
our products
our service
Our company
Shenzhen Tianweisheng Electronic Co., Ltd. started from 1998 and is located in Shenzhen.
As a professional PCB supplier, we have excellent teams which focus on product development & design, quality control & inspection and company management. In order to supply the best products and services, we have built a modern quality management system which is in strict accordance with international standards.
Besides, because of large overseas markets, our products have passed UL, ISO9001 and IS014001 certifications.
Our factory
We have a general investment of RMB 1,000,000 and a plant area of more than 50,000 square meters.
We have abundant financial resources and advanced equipment, including Automatic electroplating production lines, Automatic Horizontal Lines and Lead-Free HAL lines.
our products
our products have passed UL, ISO9001 and IS014001 certifications.
NO |
ITEM |
Technical capabilities |
||||
1 |
Layers |
1-30 layers |
||||
2 |
Max. Board size |
2000×610mm |
||||
3 |
Min. board Thickness |
2-layer 0.15mm
|
||||
4 |
Min. line Width/Space |
0.075mm(3mil) |
||||
5 |
Max. Copper thickness |
6OZ |
||||
6 |
Min. S/M Pitch |
0.075mm(3mil) |
||||
7 |
Min. hole size |
0.1mm(4mil) |
||||
8 |
Hole dia. Tolerance (PTH) |
±0.05mm(2mil) |
||||
9 |
Hole dia. Tolerance (NPTH) |
+0/-0.05mm(2mil) |
||||
10 |
Hole position deviation |
±0.05mm(2mil) |
||||
11 |
Outline tolerance |
±0.10mm(4mil) |
||||
12 |
Twist & Bent |
0.75% |
||||
13 |
Insulation Resistance |
>1012 Ω Normal |
||||
14 |
Electric strength |
>1.3kv/mm |
||||
15 |
S/M abrasion |
>6H |
||||
16 |
Thermal stress |
288°C 20Sec |
||||
17 |
Test Voltage |
50-300V |
||||
18 |
Min. blind/buried via |
0.15mm (6mil) |
||||
19 |
Surface Finished |
HAL, ENIG, ImAg, Imsn OSP, Plating AG, Plating gold |
||||
20 |
Materials |
FR4,H-TG,Teflon,Rogers,Ceramics,Aluminium, Copper base |
Our company is processing a conventional, PTH or multilayer circuit and bonding it to a fully machined heat sink / grounding plate.
We can process materials that have either aluminium, copper or brass backing ranging in thickness from 0.4mm to 10mm. Circuits can also be made from any of the available microwave laminates and post bonded to pre-fabricated metal structures using either electrically conductive or non-conductive sheet adhesives.
our service
