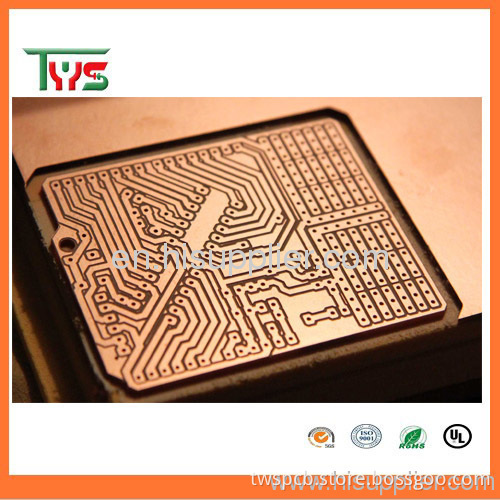

Copper Clad Pcb Fr4 Single Sided Pcb
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Quick Details
| Place of Origin: | Guangdong China (Mainland) | Brand Name: | LX | Model Number: | LX0002 |
| Base Material: | FR4 | Copper Thickness: | 0.5OZ | Board Thickness: | 1.2mm |
| Min. Hole Diameter: | 0.2mm | Min. Line Width: | 0.3mm | Min. Line Spacing: | 0.2mm |
| Surface Finishing: | ENIG | pcb factory: | pcb assembly | pcb design service: | aluminum pcb for led |
| high tg170 pcb: | HDI pcb |
Packaging & Delivery
| Packaging Detail: | Inner:vacuum package Outer:carton |
| Delivery Detail: | 3~5Days |
Specifications
1.MOQ is 1piece
2.pcb assembly service
3.pcb designservice
4.components procurements
2.pcb assembly service
3.pcb designservice
4.components procurements
PCB Process Capability
·processing layers:1-28 layers
· Finished thickness (thinnest - the thickest): 0.008 "~ 0.24" (0.20mm ~ 6.0mm)
· Minimum aperture: 6mil (0.15mm)
· Minimum line width / spacing :3-4 mil (0.076-0.10mm)
· Maximum board size: Single & Double 22 "x 43" (550 x1100mm), Multi-layer 22 "x 25" (550mm x 640mm)
· Impedance Control: ± 10%
· Surface Treatment: OSP, HASL, Electric Nickel / Gold, Chemical nickel / gold, lead-free HASL , Gold finger, immersion Silver, Immersion Tin.
· Base materials: FR4 ( ShengYi, KB, International), high TG (TG150, TG170), halogen-free board (Halogen-free), high frequency plate (Rogers, Teflon, Taconic), made PTFE (PTFE) ,, AL aluminum plate (Berquist, Al-made basis), copper (Cu Base), Iron (Fe Base), ceramic substrate (Ceramic Base)
The quick-turn service
24 hours for 2-Layer sample
48 hours for 4-Layer sample
72 hours for 6-Layer sample
Product HighQuality Perfect
Our deliverytime:
1.About Factory:
Experience: we have 20 years experinecsin circuit board manufacturing,with 50 employees and 60 excellent engineers,covering an area of 13000 square meters.Monthly capability is more than 5000square meters, 4500 types/month. we cooperate with some well-known enterprises,such as Panasonic, HP,Honeywell and so on.
2.Good after sales service:
anything wrong happening in our products willbe solved within 2 hours. we always offer relative technical support/consultant.Quick response. all your inquiry will be replied within 24 hours.
3.Ourproducts and service are sold well in North America,West Europe, Japan,Singpore, Malaysia and other countries.
Meet your need is ourgreatest pursuit .If you are looking for a pcb board manufacturerinchina,Pleasegive us your files ofpcb for a quote (Gerberfiles and specification),I will reply email in 3hours. Youalso cancontact usby .
1.Advanced production lines andprofessional staff.
2.Honesty credibility in china'stop.
3.Competest price but highquality.
4. One-stopservice.
5.Delivery ontime.
