Ip65 Multi Chip 60w Led Street Lamp Bridgelux Chip Mean Well Driver

This  IP65 Multi chip 60w LED street lamp BridgeLux chip Mean Well driver was designed to replace 500w incandescent lamps, 180w HID lamps, and 120w energy saving lamps.

Model No.: SW-SL008-W60
Power: 60w
30w to 70w can be made with this design
Working voltage: AC85-265V
Lumens: over 6000LM
LED chipset: BridgeLux, or Epistar
----------In fact, led chip brand is important, but the technology and materials for encapsulation is much more important; we are using INTEMATIX phosphor & SHIN-ETSU silica gel for encapsulation, and 1.2 golden wire & pure copper fixtures, the performance will be very stable, and the lumens decays are very slow.

LED power supply: UL listed Mean Well led driver.

LED driver is the heart of a led lamp, so we never use cheap & low quality led driver for this IP65 Multi chip 60w LED street lamp BridgeLux chip Mean Well driver

Specification for this item:

ITEM:	SW-SL008-W60
Input Voltage:	85-265V, 277v is also available
Frequence Range:	50-60Hz
Power Factor:	>0.97
LED working Voltage:	DC30~34V
LED quantity:	1 piece 60w COB led array
Led Consumpution:	60w
Total System Consumpution:	67w
Led Luminous:	100-110Lm/w
Led Initial Flux:	>6000Lm
Color Temperature:	Warm white(2700-3500K), Pure white(4000-5500k), Cool White(6000-7000K)
Color Rendering Index:	Ra>78
Beam angle:	120 °
LED Junction temperature:	<55°C
Working Temperature:	-40 °C ~+55 °C
Working Life-span:	50000hours
Certificates:	CE(EMC, LVD), RoHS, FCC, IP65
Gross weight:	7.5KGS
Packing size:	32*66*25CM

Curve distribution(actual testing data):


We can make 30w, 40w, 50w, 60w, 70w with this design:

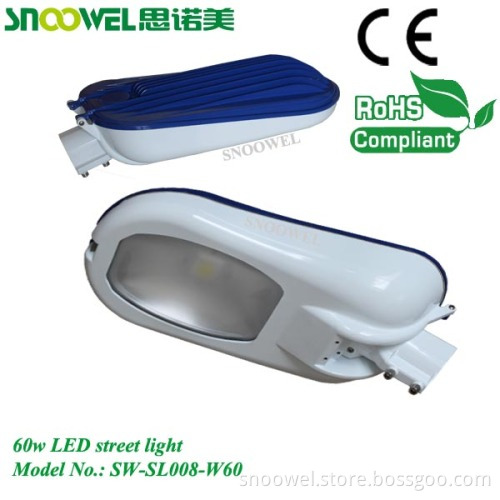

Product pictures of IP65 Multi chip 60w LED street lamp BridgeLux chip Mean Well driver:
