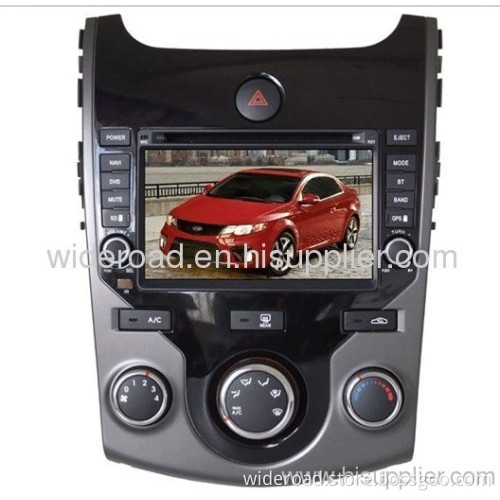

2 Din 7 Inch Touch Screen Car Navigation Gps For Kia New Forte

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

1. 7 inch 16:9 800*480 digital high definition TFT LCD touch screen car dvd

2. Built-in GPS navigation system

3. Build-in Bluetooth for hand free (Coming Tel No. display function & Call out directly by touch screen)

4. SD card slot, support mp3/mp4/Divx/WM etc

5. Compatible with mp3/mp4/DVD/VCD/CD/CD-R/Divx/CD-RW etc

6. With excellent mechanical anti-vibration and electronic shock protection

7. Uniquely designed circuitry including standby function to increase battery durability

8. Adjustable parameters can be memorized automatically, and resume back to the default value

9. 3D interface make operation to easy

10. Real time clock function

11. One channel video input, two channel video output; two channel audio input, three channel audio output

12. Dual zone function (listen to radio/CD while using GPS)

13. 30 preset radio stations

14. Multi-function OSD menu

15. Small light available on the button of the panel

16. Fluorescent keys available for the remote control

17. Radar detection and rear view mirror both available

18. Original Canbus system for steering wheel control

19. Built-in DVB-T for digital television system (optional)

20. Built-in TV tuner

System parameters
Working voltage	DC 11V-14V
Working current	MAX 15A
Standby current	25 mA
Video system	Automatic PAL/NTSC
GPS specification
Operation system	WINCE 6.0 CORE
Support map	Garmin, Tomtom, IGO, Route 66 etc
Processor	Sirf Atlast V
EMS memory	64MB SDRAM
Storage device	256MB
Display output	CVBS+S-VIDEO output
Audio output	Stereo CD Quality
Main frequency	400MHz
Support audio type	MP3/PCM/WMA
Support video type	ASF/AVI/WMV/DIVX
Chipset	SIRF STAR 3
Frequency	1.575GHz
Channel number	20channels
Tracking sense degree	-159dbm
Position accuracy	10m, 2D RMS, WAAS enable
Velocity	0.1m/s
Data renewal rate	1Hz
Re-catching time	Average 0.1s
Hot start time	Average 1s
Warm start time	Average 38s
Cold start time	Average 42s
The biggest fixed height	18000m
The biggest velocity	515m/s
Power specification	DV 12V, current<500mA
Consumption	4.5W(12V/360mA), normal 3W(12V/250mA)
DVD parameters
Video output range	1+10.2Vp-p(75Ω)
Disc spec	Diameter 12cm disc
Compatible disc	DVD/VCD/CD/MP3/WMA/JPEG/MPEG4
Amplifier parameters
Testing voltage	13.8V
Maximum power output	4×45W
Speaker impedance	8Ω (4-8Ω acceptable)
Audio parameters
Track imbalance degree	≤2dB
Segregation degree	≥45dB
Frequency response	20Hz-20KHz (±3dB)
Volume adjustment	Low 100Hz±7dB Medium 1KHz±7dB High 10KHz±7dB
Radio parameters
FM/AM frequency	FM: 87.5MHz-108MHZ AM: 522KHz-1620KHz
Tune method	PLL frequency complex tune
Display method	TFT Graphical User Interface OSD
Storage quantity	FM radio: 18channels AM radio: 12channels
Search method	Automatic/manual
