540TVL car rear-view camera IGV-CAR63

Feature:
● Car IR Day/Night Super-Mini Rear-view Camera
● 1/3" SONY Color SuperHAD II Low Lux CCD
● High Resolution 420/480/540/600/650TV Lines
● IP66 Weather-proof & Vandal-proof
● Pan/Till adjustment available
● Lens choices: 2.8mm/3.6mm/6.0mm/8.0mm/12.0mm for selections
● 12pcs leds

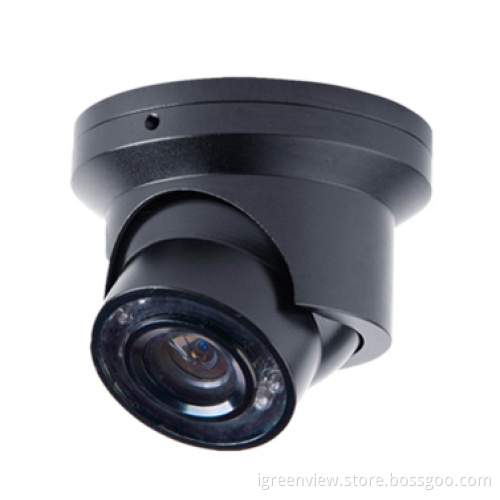

Picture:

540TVL car rear-view camera IGV-CAR63 Specification:

Model	IGV-CAR63HR	IGV-CAR63LR
Image Sensor	1/3" Sony Color CCD
Picture Elements	752H*582V
Horizontal Resolution	540 TVL		420TVL
Sensitivity	0 Lux at F1.2 (Infrared LED On)
Scanning System	625TVL/2:1 Interlace
Synchronization	Internal
Infrared Spectrum	850nm
S/N Ratio	More than 50 dB, (AGC Off)
Auto Gain Control (AGC)	Auto
White Balance	Auto
Electronic Shutter	Auto
Back Light Compensation	Auto
Infrared LED	12 LEDs
Infrared LED Range	8m
Video Output	Molex Terminals x1
Audio Output	N/A
Mirror	N/A
Gamma Ratio	0.45
Auto-iris Lens Control	N/A
Lens	2.8/3.6/6mm Lens optional
Exterior Focus Adjustment	N/A
Lens Mount	M12XP0.5mm Thread
Pan Adjusting	N/A
Tilt Adjusting	N/A
Power Supply	12V DC ±10%, ø 2.1mm DC Jack
Power Consumption	140mA
Dimensions (ø X H)	54*43.4mm
Net Weight	106g
Weatherproof/Water Proof	IP66
Operating Temperature	-10°C to +50°C
