Colour Mini Taxi Camera IGV-CAR65

Features:

● Super Mini"Metal Box" Camera for car,taxi,bus.
● 420/540/600tvl for options
● Till Adjustment 360 degrees
● 2.35mm fixed lens

● Available in black finish.

● Low power consumption.

● Easy installation on ceiling or wall, surface or flush mount.

● Option audio output.

● 5 LEDs with SMD type.

● 8.5-18V DC wide range power input.

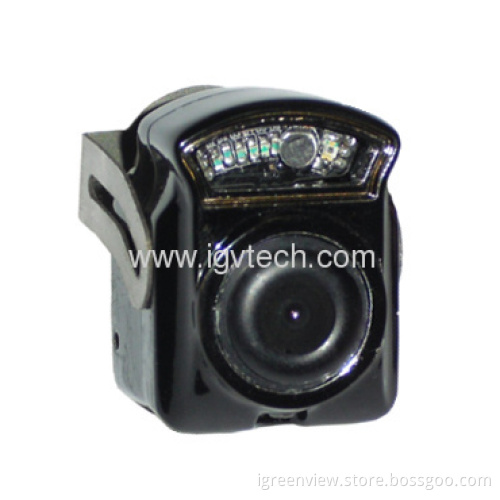

Colour Mini Taxi Camera IGV-CAR65 Picture:

Operation procedures:

1. Attach the mounting bracket (4) to wall or ceiling, as required. Use the supplied screws to fix camera (5) in position ~ a firm mounting surface is essential for a stable installation.

2. Connect the camera as follows:

DC Jack = 12vDC+/ 12vDC-,

BNC Jack = VIDEO OUTPUT.

RCA Jack = AUDIO OUTPUT

3. Adjust camera position by loosening the fixed screw (3). Adjust the focus sharpness of the lens (1) by loosening the focus-lock screw (2).

4. Re-tighten the all fixed screws.

Specifications:

Model

IGV-CAR65DAP

Pick up Device

1/3" CMOS Sensor

TV System

PAL/ NTSC

Effective Pixel Array

811 x 508

Horizontal Resolution

600TVL

Sensitivity

0 Lux (LED On)

Synchronization

Internal

Infrared Spectrum

850nm

Infrared LED

5 LEDs with SMD type

IR range

1.5 M

S/N Ratio

More Than 50 dB, (AGC Off)

Audio

Available

Auto Gain Control

N/A

White Balance

Auto

Electronic Shutter

Auto

Back Light Compensation

N/A

Video Output

1 Vp-p, 75ΩComposite

Gamma Ratio

0.45

Lens

Waterproof f2.35mm fixed lens

Field of View (D)

170 degree

Pan Adjusting

+/-30 Degree

Tilt Adjusting

0-90 Degree

Power Supply

12V DC ±10%

Power Consumption

60 mA

Dimensions

32.2(L) x 42.6(H) x 29.5 (W) mm

Net Weight

120 g

Weatherproof

N/A

Operating Temperature

-10°C to +50°C
