Bus IR Day/Night Exterior Side-view Cameras IGV-CAR59

Features:
● 1/3" SONY Color SuperHAD II Low Lux CCD
● 420-700TVL Optional;
● 2.8mm/3.6mm/6.0mm lens Optional;
● 12 Pcs IR leds,IR Range:10m
● IP67 Water-proof& Vandal-proof housing
● With rubber gasket for vehicle water-proof after installation
● Angle Adjustment with adaptor in 0°, 10°, 15°degrees
● A/B/C/D directions for different orientations installtion

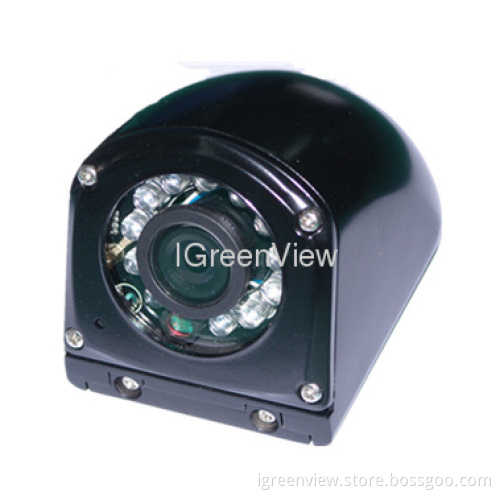

Bus IR Day/Night Exterior Side-view Cameras IGV-CAR59 Picture:

How to Install IGV-CAR59:

1. Loosen the lock screws (3) by applied hex key, remove the mounting base (2) from the camera (1).

2. Attach the mounting base (1) to the wall or ceiling, wherever you want to install the camera. Locate a wall stud or ceiling joint and secure the base by the supplied mounting screws (4).

3. Connect the BNC to the monitor and DC jack to 12V DC power source, when picture shown up on the monitor.

4. Fix the camera on the mounting plate.

Specifications:

Model

IGV-CAR59EXR

Pick up Device

1/3" Color SONY SuperHAD II CCD

TV System

PAL/NTSC

Picture Elements

752Hx582V

Horizontal Resolution

600 TVL

Sensitivity

0 Lux at F1.2 (Infrared LED On)

Scanning System

625TVL

2:1 Interlace

Synchronization

Internal

Infrared Spectrum

850nm

S/N Ratio

More than 50 dB, (AGC Off)

Auto Gain Control (AGC)

Auto

White Balance

Auto

Electronic Shutter

Auto

Back Light Compensation

Auto

Infrared LED

12 LEDs

Infrared LED Range

10 m

Video Output

1 Vp-p, 75Ωcomposite , BNC x1

Audio Output

N/A

Mirror

N/A

Gamma Ratio

0.45

Lens

f3.6mm Standard Lens

Exterior Focus Adjustment

N/A

Lens Mount

M12XP0.5mm Thread

Pan Adjusting

0-360°

Tilt Adjusting

0-40°

Power Supply

12V DC ±10%, ø 2.1mm DC Jack

Power Consumption

180mA

Dimensions (L X W X H)

76.4 x 60.5 x 56mm

Net Weight

203g

Weatherproof/Water Proof

IP67

Operating Temperature

-10°C to +50°C
