4 Channels 3g Mobile Dvr With Gps And Motion Detection For Vehicles

4 Channels 3g Mobile Dvr With Gps And Motion Detection For Vehicles

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

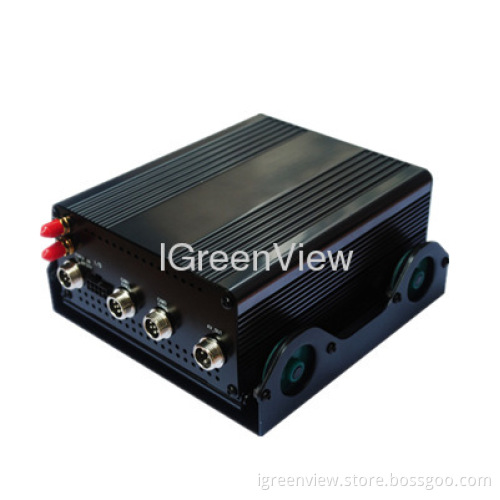

3G mobile DVR IGV-MB4104

Features:
1. 3G mobile DVR
2. Built-in 3G module(WCDMA/EVDO)
3. Built-in GPS module
4. Motion detection
5. Dual anti-vibration

Main Description:

1. Built-in GPS module.

2. 3G transmission function (WCDMA/EVDO)

3. 4 Channel video and audio recording (1 / 2 CH optional)

4. Advanced H.264 high profile technology for video compression at lower bitrate.

5. Video format: 1 D1 (25fps) + 3 CIF(25fps)

6. 4 alarm input, 1 alarm output

7. Motion detection / timer switch / alarm recording

8. Dual shockproof

9. Strong multiple medium supported Car black box
10.Data Storage: Max support 2TB SATA HDD, support 64GB SD Card

3G mobile DVR IGV-MB4104 Specification:

Items	Parameters		Specifications
System	Language		Chinese/English
	OSD		Graphical User interface(OSD menu)
	Password		Users Password/ Administrator Password
Vision	Video input		4-CH video input 1.0Vp-p,75Ω
	Video output		1-CH video output1.0Vp-p,75Ω
	Preview		Support 1 channel or synchronous 4 channels preview.
	Recording Ratio		PAL 25 Frame/s CCIR625 line, 50 field NTSC 30 Frame/s CCIR525 line, 60 field
	Image Compression		H.264 Main profile,
Audio	Audio input		4-ch Audio input600Ω
	Audio output		1-ch Audio output600Ω
	Recording mode		Audio & Video sync.
Image processing & storage	Video format		4-ch CIF: 25fps, or 1-ch D1: 25fps + 3CIF: 25fps,
	Video stream		ISO14496-10
	Video Rate(kbps)		CIF: 1536Kbps ~ 128Kbps,8 levels optional.Highest:1 level HD1: 2048Kbps ~ 380Kbps,8 levels optional. Highest:1 level D1: 2048Kbps ~ 400Kbps,8 levels optional. Highest:1 level
	Audio Bitrate		4Kbytes/s
	Storage		SATA 2.5'' hard drive (support to 2T)and SD card storage(support to 64GB)
Alarm	Alarm input		4 switching value
	Alarm output		1 alarm output, high level 12V output.
Wireless Transmission	3G(EVDO/ WCDMA)		Built-in 3G(EVDO / WCDMA)module
GPS	Built-in GPS module, Geographic co-ordinates , speed can be read in coding flow,and can be wireless uploaded.
Software	Analysis of PC playback	Video playback on PC,and analyse the vehicle info in the file.
	CMS	Video preview via GPS upload,alarm upload, central command and parameters configuration, etc.
Upgrade	Support SD cards upgrade.

Summary :

The DVR is a cost-effective, functional and scalable device designed for video surveillance and real-time remote monitoring of our network. It uses a high-speed processor, an embedded Linux platform and combines the most advanced IT processes such as H.264 Video Compression/Decompression. The system built in 3G and GPS module, which achieves wireless remote control real-time video online monitoring; speed, time, longitude and latitude, and the camera's information can be stampted on the video; Besides, the gps information, such as driving route, google map can be see on the CMS software. The system enables CIF, HD1 and D1 video formats. Drivers' driving information, recording and wireless data are uploaded to HDD or SD Memory Cards which are used as the storage medium. The DVR centric software platform (CMS) can be realized with links to a Central Alarm monitoring system for remote management and playback analysis. The DVR may look simple in its exterior design, but provides powerful auto black box features, with flexible and reliable installation.
