4CH D1 Mobile DVRs

Features:

● Standard H.264 video compression, supports dual stream network transmission
● Graphics & Windows OSD interface
● Supports pentaplex operation: preview, record, playback, backup, network transmission
● Supports D1, HD1 and CIF recording resolution
● Supports real-time remote view through 3G network (optional)
● GPS information embedded in stream (optional)
● Supports time-lapse recording after the car is powered off
● Supports recording and displaying the license plate number
● Supports HDD overwritten by days
● With digital zoom capabilities when previewing the video
● With password protection function
● Supports PTZ control via built-in RS-485 port
● Supports transmitting audio via network
● Supports backup and upgrade with USB flash disk & USB hard disk
● Supports operating with USB mouse
● Stable aluminum alloy structure with shock absorber
● Self recovery after power reconnected

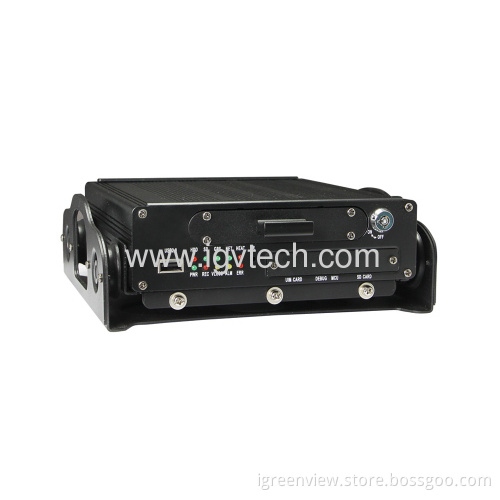

Picture:

Specification:

Model No.	IGV-MB2104
Video Compression	H.264
Video System	NTSC/ PAL
Operation System	Linux2.6
Audio Compression	8kHz 16bit ADPCM
Audio Input/Output	BNC4-channel inputs/1-channel output
Display Frame Rate	NTSC:120fps @ D1/ PAL:100 fps @ D1
Playback Resolution	PAL:CIF(352×288),HD1(704×288),D1(704×576)
Playback Resolution	NTSC:CIF(352×240),HD1(704×240),D1(704×480)
Total Recording	PAL:25 fps@D1, 50 fps@HD1, 100 fps@CIF
FrameRate	NTSC: 30fps@D1, 60 fps@HD1, 120 fps@CIF
Recording Modes	Always/Schedule / Motion detection / Sensor triggered
Recording Pack Time	15/30/45/60minsselectable
HDD Interface	Supportsup to 1 500GB 2.5 inches SATA HDD
Network Interface	RJ45Ethernet, 3G EVDO or WCDMA module (Optional)
Network Protocol	TCP/IP,UDP, DHCP, DDNS and PPPoE
Network Function	Supportsremote view with IE (Internet Explorer)
USB 2.0	USB mouse
USB 2.0	USB flash disk & USB hard disk (backup, upgrade)
Playback Modes	Normalplay, fast forward, fast rewind, frame by frame
GPS	Supports GPS information burned in stream (Optional)
Backup	AVIfile via USB flash disk, USB hard disk & Network
Alarm Modes	Motion detection, sensor triggerd, video loss, HDD error, HDD full
Sensor & Alarm I/O	4sensor inputs / 2 alarm outputs
Power Supply	DC 9~32V
Power Consumption	10~15W
Working Temperature	-10℃ to +40℃
Working Humidity	10% to 90%
Dimension(W×D×H)	217×209×70.4mm
