4 Channel H.264 Car Dvr Black Box With Gps Function And Motion Detection For All Vehicles.

4 Channel H.264 Car Dvr Black Box With Gps Function And Motion Detection For All Vehicles.

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

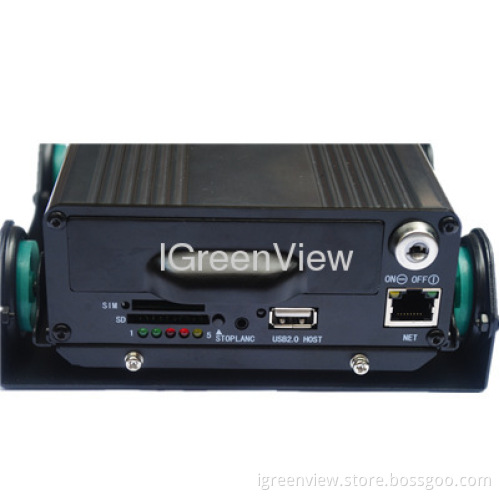

4 Channel h.264 Car DVR IGV-MB4104(B)

Features:
● Car DVR Black Box
● Built- in GPS module
● H.264 video compression
● Motion detection
● Dual anti-vibration

Main Description:

1. Built-in GPS module.

2. Sensor and alarm

3. 4 Channel video and audio recording (1 / 2 CH optional)

4. Advanced H.264 high profile technology for video compression at lower bitrate.

5. Video format: 1 D1 (25fps) + 3 CIF(25fps)

6. 4 alarm input, 1 alarm output

7. Motion detection / timer switch / alarm recording

8. Dual shockproof

9. Strong multiple medium supported Car black box

10. Data Storage: Max support 2TB SATA HDD, support 64GB SD Card

11. Compact size & lightweight, much easier for installation

4 Channel h.264 Car DVR IGV-MB4104(B) Specification:

Items	Parameters		Specifications
System	Language		Chinese/English
	OSD		Graphical User interface(OSD menu)
	Password		Users Password/ Administrator Password
Vision	Video input		4-CH video input 1.0Vp-p,75Ω
	Video output		1-CH video output1.0Vp-p,75Ω
	Preview		Support 1 channel or synchronous 4 channels preview.
	Recording Ratio		PAL 25 Frame/s CCIR625 line, 50 field NTSC 30 Frame/s CCIR525 line, 60 field
	Image Compression		H.264 Main profile,
Audio	Audio input		4-ch Audio input600Ω
	Audio output		1-ch Audio output600Ω
	Recording mode		Audio & Video sync.
Image processing & storage	Video format		4-ch CIF: or 1-ch D1: 25fps + 3CIF: 25fps,
	Video stream		ISO14496-10
	Video Rate(kbps)		CIF: 1536Kbps ~ 128Kbps,8 levels optional.Highest:1 level HD1: 2048Kbps ~ 380Kbps,8 levels optional. Highest:1 level D1: 2048Kbps ~ 400Kbps,8 levels optional. Highest:1 level
	Audio Bitrate		4Kbytes/s
	Storage		320GB SATA HDD (Max support to 2T SATA HDD and 64 GB SD card storage)
Alarm	Alarm input		4 switching value
	Alarm output		1 alarm output, high level 12V output.
GPS	Built-in GPS module, Geographic co-ordinates , speed can be read in coding flow,and can be wireless uploaded.
Software	Analysis of PC playback	Video playback on PC,and analyse the vehicle info in the file.
	CMS	Video preview via GPS upload,alarm upload, central command and parameters configuration, etc.
Upgrade	Support SD cards upgrade.
