1.3megapixel Vandal- Proof Dome Ip Camera



Indoor surveillance HD IP Dome Camera IGV-IP410

Features :

• Max resolution:1600×1200, output Real-time HD 720P image
• 1/3" Progressive Scan CMOS, Capture motion images without jagged
• Built-in 2.8-12mm zoom lens
• 15IR LEDs,IR distance 10m
• Two-axis adjustable, easy to install construction
• H.264/MJEG is optional, dual streaming, low bandwidth, and high quality.
• Support two-way talking
• Support Micro SDHC card storage;SD2.0 standard,maximum storage 32G
• Multiple network protocol support, adapt to the LAN / WIFI Mobile
• Support motion detection, network fault detection,alarm recording,image snapping
• Support 4 area privacy mask
• Support motion detection, network fault detection and alarm video, image snapping
• Small shell,space saving
• User-friendly design, installation convenience
• Support POE power supply
• High cost performance
• Support ONVIF protocol

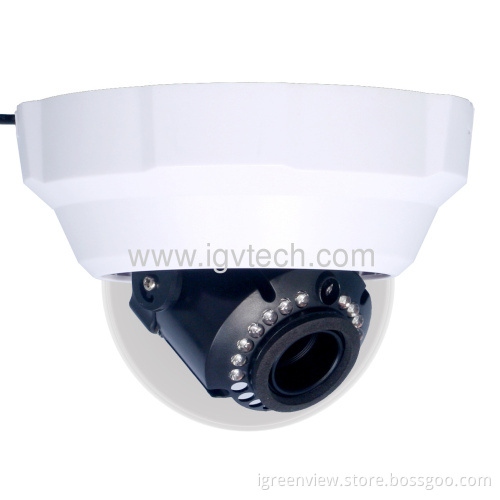

Picture:

Specification:

Model		IGV-IP410
Hardware
Sensor		1/3" Progressive Scan CMOS
Effective pixel		1600(H)×1200(V)
Min.illumination		Color Model:0.5Lux @(F1.2,AGCON)
S/N		≥50db(AGC OFF,Weight On)
IR Parameters		15 IR LEDs,IR distance 10m
Auto electronic shutter		Auto
Interface
Optical Lens	Interface	Φ14
	Lens	Manual zoom
	Focallength	2.8-12mm
Auto talkback		1 channel MIC input, Externalaccess, 3.5 mm audio interface
Audio Output		1 channel linear output, 3.5 mmaudio interface
Storage Interface		Micro SD card supports videostorage and image snapping; SD2.0 standard,maximum storage 32G
Network Interface	Lan	10/100M BASE-TX,RJ-45 connector
I/O		1-channel input, NormallyOpen/Normally Close modes adjustable; 1-channel output, 120VAC 1A/24VDC 1A, 1 RS232 interface
Audio video encoding
Video Compression		H.264 Main Profile;MJPEG/JPEGBaseline
Resolution	Master Streaming	1600*1200,1-15fps/sec1280*960,1-25fps/sec 1280*720,1-25(30)fps/sec
	SecondStreaming	640*480,1-25fps/sec320*240,1-25fps/sec 160*112,1-25fps/sec
Video Bitrate		32Kbps16Mbps,Supports CBR/VBR
Title OSD		Supports channel name, date, andvideo stream information overlay; OSD location is adjustable
Audio Compression		G.711, G.726,support 32 K stereo
Data transmission and storage
Data storage		Video and Image
Recording		Recording set up to record bymotion trigger,alarm trigger, manual, or schedule
Alarm Output		FTP,E-mail, Explorer, Software
Network protocol		TCP/IP\UDP\RTP\RTSP\RTCP\HTTP\DNS\DDNS\ DHCP\FTP\NTP\PPPOE\SMTP\UPNP
Wireless protocols (-WIFI)		802.11b/g,SupportsWEP,WPA,WPA2("-wifi" model supports)
ONVIF protocol		Support
Remote View	Computer	IE 6.0 or up, max 10user
	MobilePhone	Windows Mobile,Symbian,iPhone
General Parameters
OperatingTemperature		-10℃ - +55℃
Operating Humidity		0% - 90%
Power		DC12V/PoE(-POE)
Power Consumption		5W(MAX)
Dimension		Φ145*104(H)mm
Weight		0.6KG

Applications Scenarios :
Suitable for hotels, supermarkets, offices, corridors, stairways and other indoor surveillance sites.
