IGV-MINI56

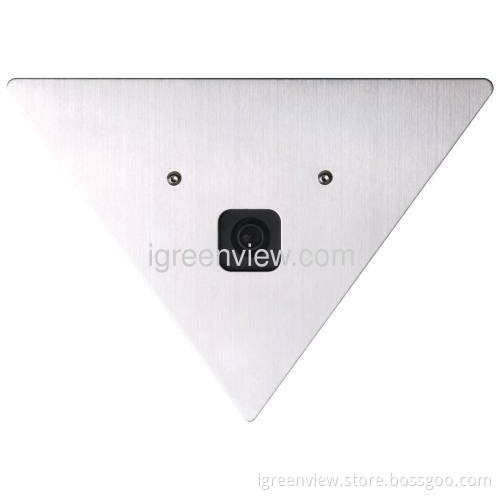

Elevator camera with 2.5/2.8mm optional lens optional,Unique design and easy installation

Model No	IGV-MINI56LR	IGV-MINI56HR
CCD Pixel	1/3Sony Supper HAD CCD	1/3 Sony Super HAD CCD
Effective pixels	PAL:500(H) x 582(V)	PAL:752(H) x 582(V)
Effective pixels	NTSC:510(H) x 492(V)	NTSC:768(H) x 4924(V)
Resolution	420TVL	540TVL
Min. illumination	0.5 lux	0.05 lux
Sensing Area	4.9mm x 3.7mm
Video output	1.0Vp-p.75Ω
S/N ratio	more than 48dB	More than 50dB
Sycn.system	Internal/Line lock
Lens	2.5/2.8mm optional
shutter	1/50(1/60)~1/1000.000S
BLC	Auto	on/off
Feature	N/A	OSD optional,(Motion detection,Privacy) Menu Language: Korean,English,Japanese,Chinese
Power	DC12V
Dimension	80mmx80mm x95mm
Weight	N/W580g,G/W780g
Power consumption	100 MA
Power supply	DC12V,500MA

Elevator camera
