IN-Ceiling mount 1080P HD High Speed Dome Camera IGV-PTZ83

Feature:
● Integrated structure,convenient and fast installation

●128 presets(titles can be set), 4 tours; 8 programmable zones(titles can be set); 4 pattern, each record time is more than 180 seconds;4 scan, support camera scanning repeatly between right limit and left limit at an appointed speed.

● All-in-one, highly compact camera ideal for demanding applications such as video surveillance, public transportation, sports, videoconferencing and more

● Park action function, can auto-call presets or start-up tour, pattern, scan and display areas after dome is idle for a period of time.

● Screen will display pan/ tilt position, zoom etc.

● Built-in lightning-proof, Surge-proof and wave-proof.
● 2 megapixel hd-sdi PTZ camera optional

High Speed Dome Camera Module Features:

● 1/2.8" 2.1 Megapixel Progressive Scan CMOS
● Sony "Exmor" Technology Support Min. Illumination
● 1080P Full HD Resolution Support
● Real Time Video up to 30FPS
● 18x Optical Zoom
● Built-in IR-Cut Removable (ICR) Model
● Built OSD
● Mirco Coaxial Cable through LVDS Output
● Parameter Control through URAT Interface
● Support SONY VISCA Protocol

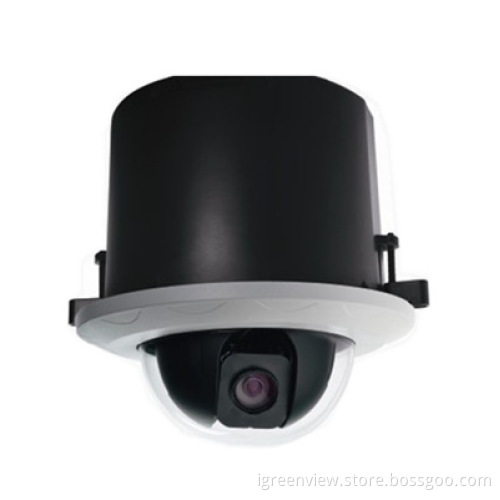

1080P HD High Speed Dome Camera IGV-PTZ83 ( IN-Ceiling mount) Picture:

High Speed Dome Camera (2 megapiexl hd-sdi camera Optional)

High Speed Dome Camera ModuleSpecification:

VIDEO

Image Device

1/2.8" Color Sony Exmor CMOS

Picture Elements

Approx. 2.1M (1920 × 1080)

Resolution (Frame Rates)

720_50i / 720_60i;720_25p / 720_30p

1080_50i / 1080_60i;1080_25p / 1080_30p

Illumination

0.1 Lux @F1.2 Color Mode

S/N Ratio

More than 48dB

Electronic Shutter

Auto: 1/50~1/100,000

Manual: 1/50(60), 1/100(120), 1/250, 1/500, 1/1000,

1/3000, 1/5000, 1/100,000

Gamma

0.45

LENS

Lens Drive Type

Mototized 18X Zoom

Focal Length

f=4.7 mm (wide) to 84.6 mm (tele)

Angle of View

54.1°(wide end) to 3.2° (tele end)

Aperture Range

F1.6 to F3.5

Aspect Ratio

16:09

Iris Control

Auto / Manual

Mini. Shutting Distance

0.01m (Wide), 1.5m (Tele)

DAY / NIGHT

IR-Cut filter Removable

Yes

Day & Night

Auto / Day / Night / External

FUNCTIONS

On-Screen-Display (OSD)

N/A

Language

N/A

Focus Mode

Auto / Manual / Push Auto / Infinity

Zoom Speed

High / Middle / Low

Digital Zoom

N/A

Wide Dynamic Range (WDR)

Normal / ATR-EX

Digital Noise Reduction (DNR)

On / Off

Digital Slow Shutter (DSS)

On / Off

White Balance

Auto / Indoor / Outdoor / Manual / Push Auto

Gain Control

Auto

Back Light Comp.

On / Off

Flickerless Mode

On / Off

Remark:

Serial Digital Interface (SDI) is a standard for digital video transmission over coaxial cable - the same cable used for Analog security systems. This makes it easy to convert from Analog to SDI because you don't have to re-cable and you don't need networking knowledge to set up the system. HD-SDI has an advantage over Analog systems in that it supports high resolution cameras.

HD-SDI Cameras can be part of a hybrid Analog-SDI system. Analog cameras are used for locations where VGA resolution is adequate. HD-SDI Camerasare placed in important areas where you may need to zoom in to see faces, license plate numbers, or other detail. This makes for a cost-efficient surveillance system.
