Contact Now16X Zoom 1080P Full HD PTZ Dome Camera IGV-PTZ309-16X
Features:
● Minimal illumination: 0.01 lux @ F1.2 white and black
● Adopt high performance infrared array LED, low power, IR distance up to 120m
● Built-in thermal processing device, reduce the inside temperature, prevent the ball inside covering of fog
● Precision motor drive, sensitive response, smooth operation, accuracy error is less than 0.1 degrees,image jitter free at any speed
● Support 3D digital noise reduction
● Support the standard API interface, support Onvif and PSIA protocol access
● Support automatic aperture, auto focus, auto white balance, backlight compensation
● Support the ultra low illumination, 0.05Lux/F1.4 (color), 0.005Lux/F1.4 (white and black), 0 Lux with IR
● Support digital DWDR function
● 360 degrees in the horizontal direction continuous rotation, vertical direction for -2 °to -90 °, without monitoring blind
● Support 128 preset spots, and with preset video freeze function
● Support 3 slip cruise scan, each can be added to 16 preset points
● Support proportional zoom function, rotating speed can be adjusted automatically according to the zoom multiples of lens
● Support alarm function, built-in 1 channel alarm input and 1 channel alarm output

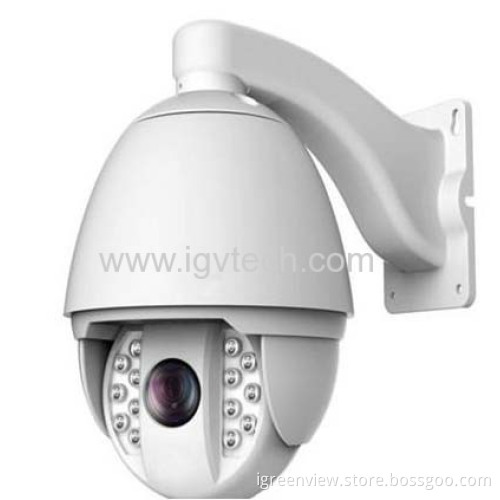

Picture:
Specification:
Model |
IGV-PTZ309-16X |
Camera | |
Image sensor |
1/2.8 "SONY CMOS |
Effective pixel |
2.0mega pixel |
Max image size |
1920X1080 |
Frame rate |
50Hz: 25 frame(1280×720)(1920X1080) |
60Hz: 30 frame(1280×720)(1920X1080) | |
Minimal illumination |
color:0.05Lux @ (F1.4,AGC ON) |
white and black:0.005Lux @(F1.4, AGC ON) | |
0 Lux with IR | |
White balance |
Auto / Manual / Auto tracking white balance /Outdoor/Indoor/Fluorescent lamp white balance / sodium white balance |
Gain Control |
Auto / Manual |
3D Noise reduction |
Off / normal |
SNR |
﹥50dB |
Back light compensation |
On / Off |
DWDR |
on/off |
D&N system |
Automatic ICR color change to black |
Digital zoom |
16 times |
Focus mode |
Auto / Semi-automatic / Manual |
Infrared function | |
IR distance |
120 meters |
Infrared angle |
variable focus |
Lens | |
Focal length |
F5mm-80mm Iris F1.6(Wide-angle) F3.2(Telescope) Auto Iris |
Zoom speed |
about 5 second(Optical, Wide-angle-Telescope) |
horizontal angle |
54.1-3.2 degree(Wide angle-Telescope) |
Close shot distance |
INF(wide angle), 1500mm(Telescope) |
PTZ Function | |
Level range |
Continuously rotate 360 Degrees |
Horizontal speed |
Horizontal monitoring speed: 0.1 ° -160 ° /s, speed can be set |
Level preset speed: 240 ° /s | |
Vertical range |
-2°-90°Automatic turnover |
Vertical speed |
Vertical monitoring speed :0.1°-120°/s,Speed can be set |
Speed of vertical preset point: 200°/s | |
Proportional variable times |
support |
Number of preset point |
128 |
Cruise scan |
3 slip, each can add to 16 preset points |
Power off memory |
support |
Preset video freeze |
support |
Timing task |
Preset point / Cruise scanning / automatic scanning / vertical scanning / random scan / frame scan / panoramic scanning / ball machine reboot / ball machine check / auxiliary output |
Network | |
Video compression |
H.264/MPEG4/MJPEG |
Video compression |
G.711ulaw/G.711alaw/G.726 |
Network protocol |
IPv4, HTTPS, HTTP, TCP, UDP, RTP/RTCP/ |
Same time preview video number |
maximum of 10 CH |
Dual stream |
support |
User right |
Allows 4 users at the same time |
Safe mode |
Multi level password protection, IP address filtering, HTTPS encryption, user record. |
System integration | |
Alarm input |
support 1 ch alarm linkage(0-5vDC) |
Alarm output |
1 ch, support alarm linkage |
Alarm linkage |
Preset point / Cruise scanning / pattern scan /SD video / trigger switch output / client electronic map |
Audio input |
Audio input (LINE input), audio peak: 2-2.4V[p-p], output impedance: 1K Ω ± 10% |
Audio output |
Linear level, impedance: 600 ohm |
Network interface |
Built-in RJ45 Network port |
Support the 10M/100M network data | |
Power interface |
12V/4A |
Application programming interface |
Support software integration of open API, support the standard protocol (Onvif), |
General specification | |
Power dissipation |
30W max (Include IR led 15W max) |
Temperature & humidity |
-30 ℃-65℃ |
Humidity is less than 90% | |
Protection grade |
IP66 (outdoor) |
TVS 4000V lightning protection, anti surge, anti surge, accord with GB/T17626.5 four standards | |
Installation |
Various installation options are selected according to the application environment |
Size |
Φ252(mm)×385(mm) |
Weight |
6.95Kg |
