Single Channel Active Video Transmitter/active Cat5 Video Transceiver

Single Channel Active Video Transmitter/active Cat5 Video Transceiver

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Single Channel Active Video Transmitter (IGV-UTP03T/R ) Feature:

● Long Distance Transmission of PAL /NTSC Real-time Video;
● Exceptional InterferenceRejection;
● Options for Distances: Three Levels;
● Red Light forPower, Green Light for Video;
● Built-in Surge Protection, LightingProtection and Other Protection Setting;
● Convenient Wiring, Higher CableUtilization Rate and Lower Integrated Wiring Cost.

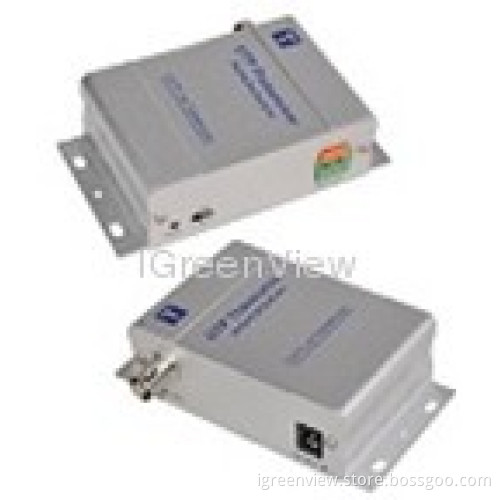

Single Channel Active Video Transmitter (IGV-UTP03T/R ) Picture:

Single Channel Active Video Transmitter (IGV-UTP03T/R ) Specification:

Video	Frequency	DC To 5MHz
	Impedance	Coax BNC:75Ω; UTP:100Ω
	CMRR	60dB typ
	Attenuation	0.3dB typ
Environm ent	Temperature	Working Temp:-10℃~+50℃; Storage Temp:-30℃~+70℃
Environm ent	Humidity	0~95%RH
Wire Type	Category Type	UTP CAT5 ,24-16AWG
Wire Type	Impedance	9Ω(300M)
Power		DC12V
UTP Port		Terminal Block
Dimengions(mm)		1037030
Weight(g)		100

Active Video Baluns

Active video baluns include a power supply and act also as an amplifier so that cable distances can be increased beyond 1200 feet (the limit for passive baluns). An active balun receiver can be used on the DVR or monitor end of the cable with a passive balun on the camera end to boost the maximum effective distance to 2000 feet. When an active transmitter balun and active receiver balun are used together, the effective distance of the cable increases to 4000 feet for color cameras and 5000 feet for black and white. The below diagram illustrates the wiring used when installing active video baluns. Please note that power is required for both the transmitting and receiving unit
