Cg-2000(4-30kw) Adjustable Corona Generator
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description

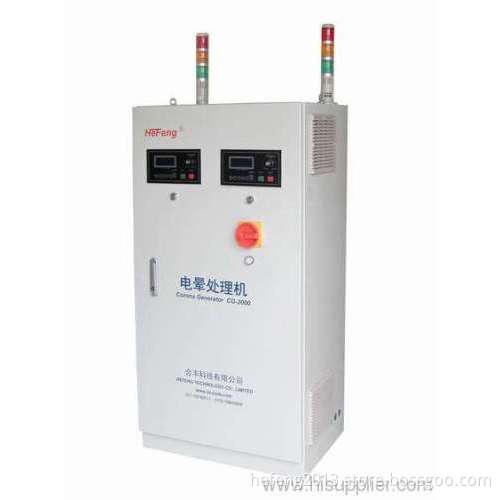

CG-2000(4-30KW) Adjustable Corona Generator
| Model | Input Voltage | output voltage | output power | output frequency |
| CG-2000-20 | AC220V ±10% 50/60Hz | 7.5KV-15KV | 2KW | 15KHZ-40KHZ |
| CG-2000-30 | AC220V ±10% 50/60Hz | 7.5KV-15KV | 3KW | 15KHZ-40KHZ |
| CG-2000-40 | AC380V ±10% 50/60Hz | 7.5KV-15KV | 4KW | 15KHZ-40KHZ |
| CG-2000-60 | AC380V ±10% 50/60Hz | 7.5KV-15KV | 6KW | 15KHZ-40KHZ |
| CG-2000-80 | AC380V ±10% 50/60Hz | 7.5KV-15KV | 8KW | 15KHZ-40KHZ |
| CG-2000-100 | AC380V ±10% 50/60Hz | 7.5KV-15KV | 10KW | 15KHZ-40KHZ |
| CG-2000-150 | AC380V ±10% 50/60Hz | 7.5KV-16KV | 15KW | 15KHZ-40KHZ |
| CG-2000-200 | AC380V ±10% 50/60Hz | 7.5KV-16KV | 20KW | 15KHZ-40KHZ |
| CG-2000-300 | AC380V ±10% 50/60Hz | 7.5KV-16KV | 30KW | 15KHZ-40KHZ |
1.Intelligent muti-function control system
Introduce smart chip processing .have working mode choose,many working parameter setting ,multiple man-machine operating interface and working status image-text display.
2.Digital LCD screen display
Working mode display
Current setting power level display ,current actual output power display
Continuous working time timing display
Machineimportantinformationstatus display(power ,frenquency,voltage ,current ,speed)
Discharge roller real-time speed display
3.Manual control and automatic working code(optional)
4.Remote operation control(optional)
5.When corona treater stop exhaust blower automatic delay turn off(optional)
6.A variety of corona treater working status alarm and equipment protection alarm(optional)
Support the audible and visual indication light(optional)
certification
Reasons for choosing HeFeng:
1.HeFeng have beebn focused on the development and application of corona for many years,we are professional and experienced.
2.HeFeng system ensure that your production line has the maximum operational running time.
3.All machine parts are optimally selected and matched.
4.Hefeng corona have 1-year warrantee.
5.HeFeng corona generator are recognized as the corona industry standard.
For more details, please feel free to contact me, any inquiry from you is appreciated!
