Basic Info

Place of Origin:	China
Productivity:	100000000
Supply Ability:	5000
Payment Type:	T/T,Western Union
Incoterm:	FOB
Certificate:	ccc,ce

Product Description

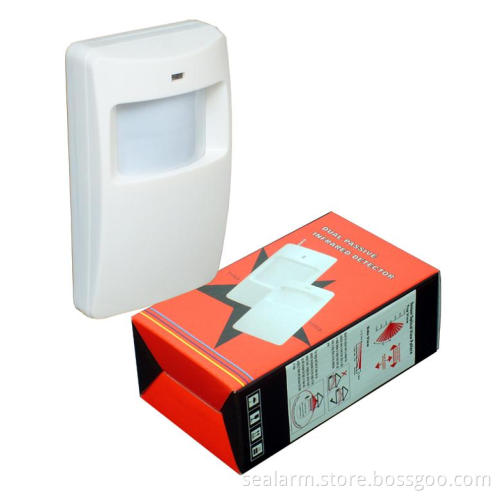

Name: Wireless PIR Motion Sensor

Model: AMD-PIR-WLM2(MCU&Internal Antenna)

Wireless Dual-Element PIR Motion Detector,Wireless PIR Motion Sensor

The wireless PIR Motion detector is an INPUT DEVICE, The PIR-WLM2 PIR motion detector is designed to provide detection of criminal intrusion through door frames and window frames into a protected area by sensing infrared energy (heat) emitting from an intruder`s body moving through a protected area. The MOTION SENSOR is commonly referred to as a PIR, which stands for passive Infrared. Upon detection of intrusion, the PIR-WLM2 automatically generates an alarm signal to control panel. The sensor also provides a tamper contact output. The unit is RF and EMI Immunity to interferences produced by radio device. The unit is can be wall-mounted by means of a bracket.

Product Features

Ø Internal Wireless Antenna, long distance transmission;

Ø Learning code, easy to assign to the alarm panels;

Ø Tamper Switch for protecting the to avoid opened;

Ø Newly-developed dual element passive infrared sensor unit;

Ø Wireless transmitting digital signal to control panel;

Ø Intelligent MCU inside, eliminate false alarm;

Ø Low power alert by buzzer sounds;

Ø Microcontroller temperature analysis and Automatic temperature compensation for best summertime detection;

Ø Tightly-mated bug guard to protect the sensor optics from insects, spiders and dust;

Ø Selectable detection sensitivity (standard/high) for different environmental requirements;

Ø SMT adopted, RF and EMI Immunity;

Ø Low power consumption, long battery life;

Ø Adjustable detection time span(4minutes or 8 minutes).

Specifications:

Operating Voltage	9V Laminated Battery
Detection Range	Vertical angle 60degree, Horizontal angle 110 degree, 12m
Standby Current	less than 12uA
Alarm Current	less than 22mA
RF Immunity	> 20 V/m 10 – 1000 MHz
Sensitivity	> 3300V/W
Noise(Vp-p)	<200mV, (mVp-p)(25°C)
Transmitting Freq.	433.92MHz
Transmitting Distance	minimum 100m( in the open area)
Temperature Range	-10°C to +50°C
Relative Humidity	90% (25 ℃ )
Installation Mode	Wall mounted by bracket
Installation Height	2~2.3m
Housing	High-impact ABS
Dimensions	107x59x45mm (HxWxD)
Applications	For indoor use. Corridor, Office, Room, Museum, Library, Finance Room, Warehouse, etc.
