P12.5 vehicle moving led display
- Payment Type:
- T/T
- Incoterm:
- EXW
- Min. Order:
- 1 Square Meter
- Min. Order:
- 1 Square Meter
- Delivery Time:
- 20 Days
- Transportation:
- Ocean, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Payment Type: | T/T |
| Incoterm: | EXW |
| Certificate: | CE,FCC |
| Transportation: | Ocean,Air |

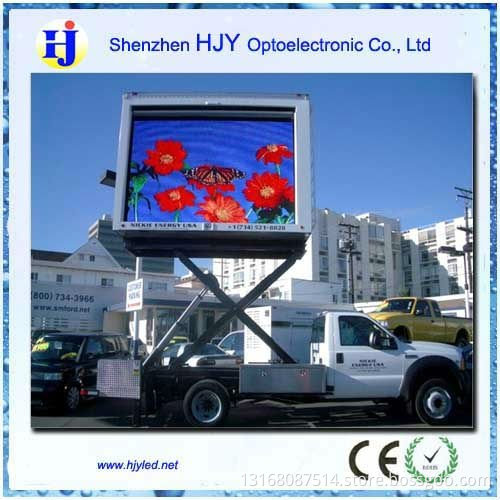

P12.5 vehicle moving led display
Product Features:
1.Show all kinds of word,text,graph, pictures, flashes, video,2-dimension, 3-dimension cartoon and any other formats
with your PC does synchronously.
2. Different signal resources input are acceptable, such as TV, HCTV, S-video, NTSC/PAL,DVI, AVI, VGA, SDI,MOV,MPG,etc.
3. Waterproof IP65 with sealed cabinets. Suituable for outdoor application in all kinds of weather condition.
It can be used in advertisement, stage, stadium, exhibition, TV-Show,mansion video wall, shopping mall, banks, schools, bus station, airport, gym, market, factories, monitoring centers,hospitals, bars etc.
|
1 |
Pixel Pitch |
12.5 mm |
|
2 |
Density per sqm |
6400 pixel |
|
3 |
Pixel configuration |
2R1G1B/1R1G1B |
|
4 |
LED package |
DIP 346 |
|
5 |
Module resolution |
16 dots*16 dots/32*16dots |
|
6 |
Module size |
200 mm*200 mm/ 400mm*200mm |
|
7 |
Cabinet size |
1200 mm*1200 mm |
|
8 |
Whiteness brightness |
≥5000nits |
|
9 |
Grey Scale/Color |
Display colors≥16.7m |
|
10 |
Optimum Viewing Distance |
12.5m |
|
11 |
Driving method |
1/4 Scan ,Constant Current |
|
12 |
View Angle |
(H) 140°(V)/ 120° |
|
13 |
Frame frequency |
60 Hz |
|
14 |
Refresh Rate |
400 Hz |
|
15 |
Max power |
600W/sqm |
|
16 |
Average power |
350W/sqm |
|
17 |
Protection classification |
IP65 front/IP54 rear |
|
18 |
Cabinet Weight |
45 Kg |
|
19 |
Install mode |
Wall mount, hung and stand structure |
|
20 |
Cabinet Material |
Iron/Aluminum |
|
21 |
Working voltage |
AC 110~220v/±10% |
|
22 |
Control method |
Synchronization or Asynchronization |
|
23 |
Malfunction dot rate |
Less than 0.0001 |
|
24 |
Working temperature |
-20~60°C |
|
25 |
Working Humidity |
10%-95% |
|
26 |
Lifetime |
100,000 hours |
|
27 |
MTBF |
≥ 10000 hours |
|
28 |
Whole display flatness |
less than 1mm juncture |
|
29 |
Transmission distance |
LAN cable ≤ 100m,optic fiber transmission,MMF ≤500m, SMF ≤15km |
