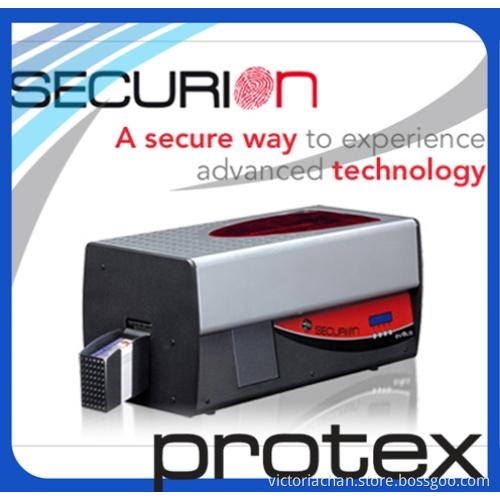

Evolis Securion card printer

Print mode

• Color dye sublimation and monochrome thermal transfer
• Enhanced color management system for top quality pictures
• Dual-sided and edge-to-edge printing

Printer specifications

• Color printing module and laminating unit
• 300 dpi print head (11.8 dots/mm)
• USB & Ethernet TCP-IP connection
• 16 MB RAM allowing two card storages (front & back)
• Flip-over station for dual-sided printing or laminating
• Detachable feeder with a capacity of 100 cards (0.76 mm or 30 mil)
• Output hopper with a capacity of 100 cards (0.76 mm or 30 mil)
• Reject box for 15 cards (0.76 mm or 30 mil)
• Two-line LCD display and a status LED
• Locking system to secure access to blank cards, ribbons, films and rejected cards
• Support for a Kensington® locking system

Lamination mode

• Full card varnish and patch films
• Dual-sided lamination
• Speed range: 2 mm/s to 18 mm/s (0.08 inch/s to 0.71 inch/s)
• Temperature range: 100°C to 180°C (212°F to 356°F)

Print and laminating speed

Personalization throughput will depend on card design and lamination speed settings

• YMCK-K, 1.0 mil patch single-side - 85 to 105 cards/hour
• YMCK, 1.0 mil patch single-side - 95 to 120 cards/hour

Supported platforms

• Windows™ 7 (32 & 64 bits), XP and Vista (32 & 64 bits)
• Windows 2003 Server and Windows 2000 drivers available upon request - depending on system configuration
• Mac OS X
