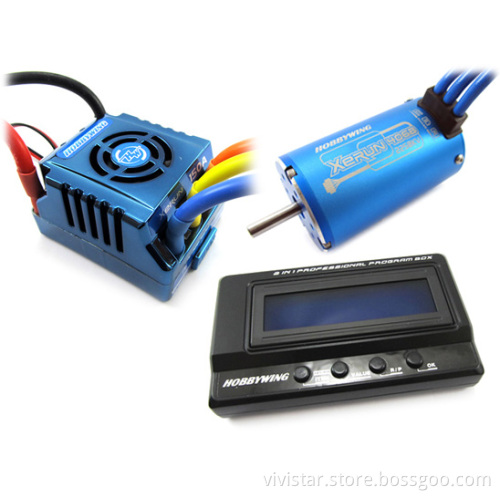

HobbyWing Xerun 150A ESC + 4068SD Sensored 2250KV Motor + Programmer

This product includes XERUN-150A-SD ESC, XERUN-4068SD Sensored Motor, LCD Programmer, 13T and 19T Pinion Gears

• Sensored system.
• Large current endurance.
• Excellent start-up, acceleration and linearity features.
• The built-in switching mode BEC has powerful output to supply all electronic equipments.
• Plenty of programmable items, suitable for various of chassis's, tires and racing tracks.
• Electric brake function, also compatible with mechanical disc-brake system.
• Multiple protection features: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection.
• Internal timing can be changed easily to make the ESC suitable for various of motors.
• Easily programmed with the SET button, LED Program Box and USB Link Software.
• ESC firmware can be updated through the USB adapter in the LCD Program Box .
• The major electronic components are sealed against splashing water and dust.
• These is a mounting stand for installing the ESC on chassis easily and firmly.

• Best control feeling and best performance.
• High efficiency (>90%), the additional heat-sink is unnecessary in most applications.
• New design with lighter weight but bigger torque.
• Higher power, faster acceleration and higher top speed.
• Top quality materials:
  Aluminum shell (case)
  High quality magnets
  Copper wires of high temperature endurance
  Good quality bearings
• Anti-broken rotor with special workmanship.

• Used to set the programmable parameters of the brushless ESC.
• Working as an individual device to set the ESC, the value of each parameter is displayed on the LCD screen.
• Working as an USB adapter to link the ESC with a PC, user can update the firmware of the ESC or precisely set the ESC by HOBBYWING USB LINK SOFTWARE on PC

ESC

• Output: Continuous 150A, burst 950A.
• Input: 6-18 cells NiMH/NiCd or 2-6S LiPo.
         (When using 2S lipo or 6 cells NiMH, an UBEC or seperate battery  is strongly recommended to supply the receiver)
• BEC: 5.75V/3A (Switch mode built-in BEC).
• Resistance: 0.0002 Ohm.
• Motor Supported: Sensorless and sensored brushless motors.
• Suitable Motor:
         When working with 4 cells Lipo: KV<=3000
         When working with 6 cells Lipo: KV<=2400
• Suitable Car:  1/8 On-road/Buggy/Truggy/Monster competition.
• Size: 58mm(L) * 46.5mm(W) * 35mm(H).

MOTOR

• KV: 2250
• Dimension: 40mm
• Length: 68mm
• Shaft dimension: 5mm
• Resistance: 5.0m
• Weight: 340g
• lO: 2.4A@10V
• Max. Input V: 18V
• Power: 1250W

PROGRAM BOX

• Size:  91mm (L) * 54mm (W) * 18mm (H)
• Weight:  65g
• Input Voltage:  4.8-6V
         (If the ESC hasn`t a built-in BEC, you must use an additional battery pack to supply the program box)
• Displayer: 16*2 characters LCD.
• Interface: Mini USB interface, ESC interface (Futaba plug), Power supply interface (Futaba plug)
