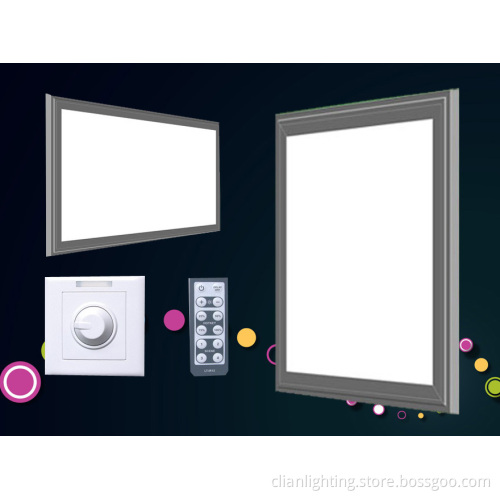

80lm/w! 18w square high brightness 30x30CM dimmable led flat panel light embeded installation! In-built, Mounting, Suspending

Technical Specification

18W 295x295x13mm Slim diammable LED Panel Light

1. LED source: 160pcs High birght SMD3014
2. Led quantity(pcs):160pcs SMD3014

3. Power(W):18W

4. Luminous Flux: 1000-1200lm

5. Bean angle:180degee

6. Material: aluminum alloy+acrylic

7. Color:PW/WW/CW

9. Ambient Temperaturee:-40~50degree

10. Input voltage: 85-265V AC, Work voltage: 30-40VDC

Feature:

18W 295*295*13mm Slim dimmable LED Light Panel

1. Use advanced side-lighting technology

2. Professional heat sinking design

3. 70%-80% energy saving than fluorescent lights

4. no flickering

5. No RF interference

6. No UV radiation

7. Easy installation and maintenance-free

8. Instant soft start

9. Proprietary design for excellent thermal management with aluminum and acrylic housing

10. Mounting: combine SMD LED light source with light fixtures, mount directly. spring mounting/ceiling mounting

Application:

Hotels, Conference / Meeting rooms, Factories & Offices

Residential / Institution Buildings, Schools, Colleges & Universities, Supermarket Lighting

Attention:

1 Use indoor or some place where no water, don`t put them in wet or dam place

2 Please check the local voltage compliance product requirements

3 Installed in a well-ventilated place to ensure appropriate environmental temperature

4 When installation, try to avoid the minefields, strong magnetic field and high-pressure region

5Always turn power off at the circuit breaker before rewiring your fixture
