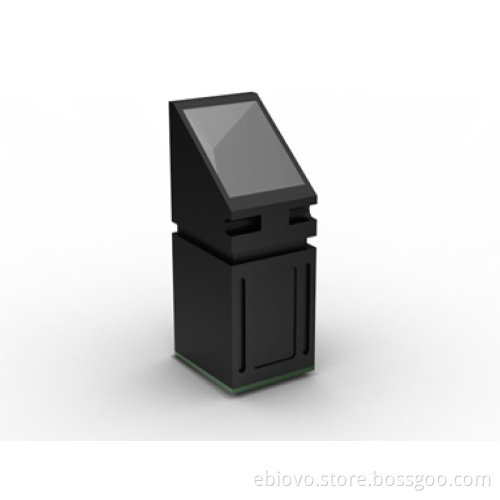

X3-FPC Fingerprint Module & Optical Sensor

Product Specifications /Features

CPU: ARM9; 200MHz Basic Frequency, RAM160K ROM256K
Fingerprint optical path: nanometre laser type principle of optical total reflection.
The registration capacity of fingerprint: standard collocation is 120 pieces and extensible; (2000 users)
False Accept Rate (FAR): < 0.0001 %, (Security Level is 3);
False Reject Rate (FRR ): < 0.01 %, (Security Level is 3);
The way of comparison: (1: 1) & (1: N);
The size of fingerprint template: 193 bytes;
The setting of security level: from level 1 to level 5.
Default value: level 3;
Registration Speed(collecting time of fingerprint characteristic): <0.45s
The time of comparison (1: N): <0.45s (the Registration time of 1000 pieces)
Interface: UART, 3.3V-TTL, electrical level;
The parameter of serial communication, the parity is none, and the stop bit is 1;
Flow Control = NONE
Baud Rate: 9600, 19200, 38400, 57600, 115200(bps)
Default value: 19200bps
Operating voltage: DC5V
Operating current: 100-150mA
Operating Temperature: -25°C- 70°C
Relative Humidity: 20%– 90%(No condensation)

Competitive Advantages

Well and High Quality Control ,
New Product ,
Competitive Prices ,
Earth-friendly Products ,
Small Order Acceptable ,
OEM Accepted
